X4 F26 X4 28iX Closing system, door, rear

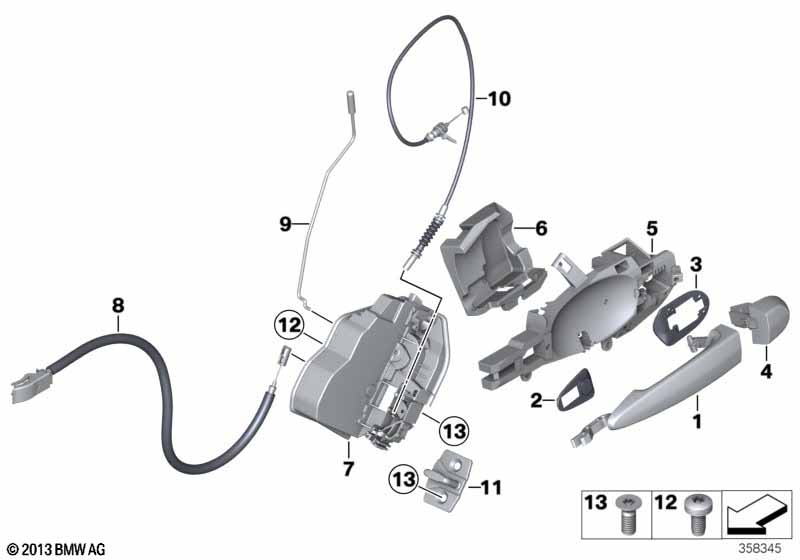

Closing system, door, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Handle bracket, left prime-coated 1 51217207561 $22.10
01 Handle bracket, right prime-coated 1 51217207562 $22.10
02 Handle bracket base, left 1 51217060293 $1.35
02 Handle bracket base, right 1 51217060294 $1.35
03 Lock cylinder base left 1 51217060667 $1.60
03 Lock cylinder base right 1 51217060668 $1.60
04 Covering door, primed left 1 51217162431 $22.50
04 Covering door, primed right 1 51217162432 $22.50
For vehicles with
Comfort access
or
Light package

S322A=Yes

S563A=Yes
04 Covering door, primed left 1 51217162433 $22.50
04 Covering door, primed right 1 51217162434 $22.50
05 Carrier, outside door handle, left 1 51217193263 $96.13
05 Carrier, outside door handle, right 1 51217193264 $96.13
06 Door handle encapsulation, left 1 51217331739
06 Door handle encapsulation, right 1 51217331740
07 System latch, left 1 04/2014 51227318413
07 System latch, right 1 04/2014 51227318414 ENDED
07 System latch, right 1 04/2014 51227229460 $176.25
For vehicles with
Alarm system
or
Thiefproofing device

S302A=Yes

S8TGA=Yes
07 System latch, left 1 04/2014 51227318417
07 System latch, right 1 04/2014 51227318418 ENDED
08 Bowden cable, door opener 2 51227205900
09 Operating rod, door rear right 1 51217205834
09 Operating rod, door rear left 1 51227205833
10 Bowden cable, outside door handle, rear 2 51227319353
11 Catch bracket 2 51217312545
12 Torx bolt M6X13 ZNNID SW 6 07147186859 $0.53
13 Torx-countersunk head screw ISA M8X28 4 51217130110 $0.52
Notes
  • ENDED = the part has been discontinued (no longer available).
