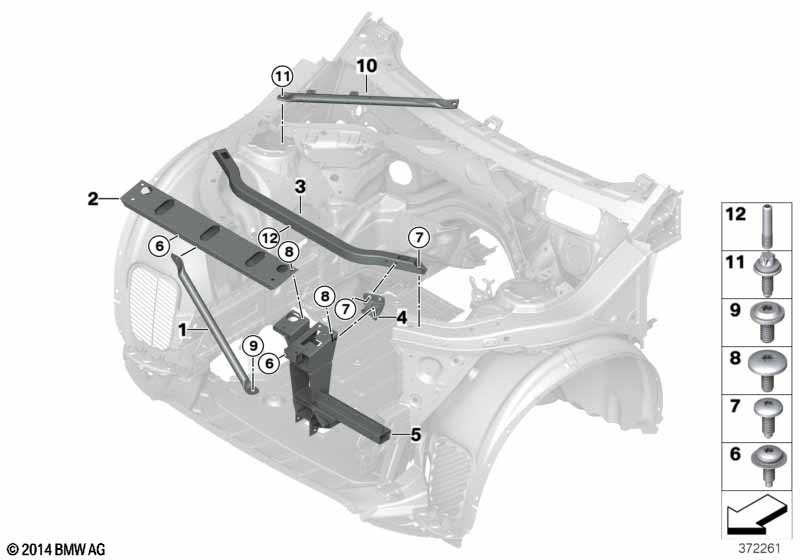

X4 F26 X4 28iX Reinforcement for body, front

Reinforcement for body, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 V-brace, left 1 51647210503
01 V-brace, right 1 51647210504
02 Joint, upper front 1 51647210501
03 Joint, upper rear 1 51647210502
Required for repair
-- Alignment pin M8 1 51647258577
04 Adapter plate, left 1 51647210507
04 Adapter plate, right 1 51647210508
05 Left support 1 51647210499
05 Right support 1 51647210500
06 Oval-head screw with washer X 07147212669 $1.16
07 Combi oval-head machine screw ISA M8X20 X 07147234925
08 Torx-bolt with washer X 07149112449
09 Torx-bolt with washer ISA M8X18 X 07149148311 $0.56
10 Strut tower brace, left 1 51617210319 +core
10 Strut tower brace, right 1 51617210320 +core
11 Torx screw M10X25MM 4 07147272400
12 Alignment pin M8 1 51647258577
Notes
  • +core = plus core charge (possibility of a return of the old part)
