Rolls-Royce Ghost RR4 Ghost EWB Lower timing case

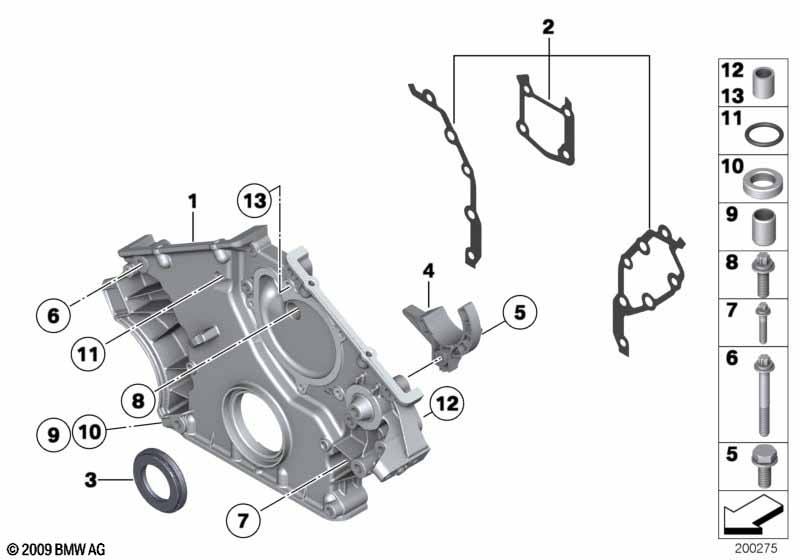

Lower timing case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Timing case cover, bottom 1 11147589634
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Gasket f timing case 1 11147563860
03 Shaft seal 45X75X8/11,9 1 11147647380
04 Chain guide 1 11147574332
05 Hex bolt with washer M6X25-ZNNIV SI 1 07119905400 $0.65
06 ASA-Bolt M8X65-U1 1 07129905712 $1.16
07 ASA-Bolt M8X40-U1-8.8 8 07129904795
08 ASA-Bolt M8X25-U1-8.8 1 09/2015 07129906905 $0.56 ENDED
08 Self-locking hex bolt M8X25-U1-8.8 1 07129909333
09 Dowel D=11,1MM 1 11217516681 $1.80
10 Shim 1 11147563933
11 O-ring 13,3X2,4 1 11147564315
12 Dowel D=10,5MM 1 11121726238 $1.62
13 Dowel D=8,5X9MM 1 11121726242 $1.07
Notes
  • ENDED = the part has been discontinued (no longer available).
