Rolls-Royce Ghost RR4 Ghost EWB Oil pan upper part, oil level indicator

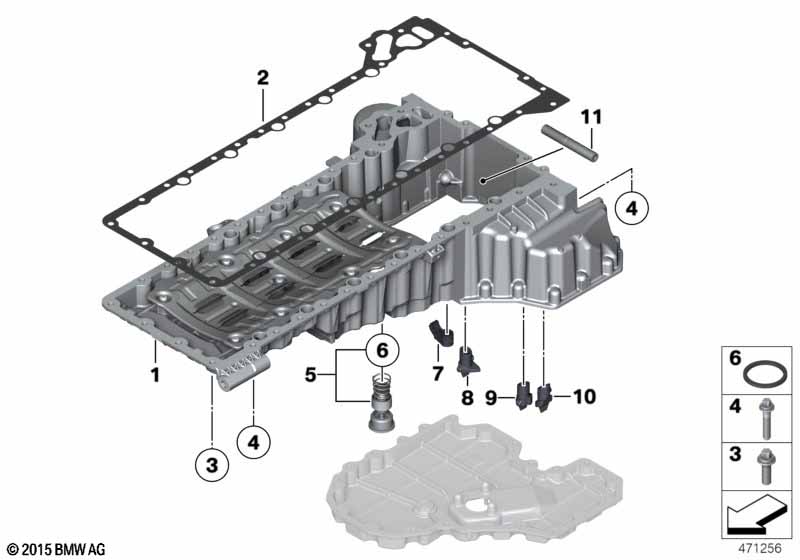

Oil pan upper part, oil level indicator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil pan upper part 1 11137578285 +core
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Gasket Steel 1 11137578305
Required for repair
-- ASA-Bolt M8X25-U1-8.8 29 07129906905 $0.56 ENDED
-- ASA-Bolt M8X45-U1 5 07129907068 ENDED
03 ASA-Bolt M8X25-U1-8.8 29 09/2015 07129906905 $0.56 ENDED
03 Self-locking hex bolt M8X25-U1-8.8 29 07129909333
04 ASA-Bolt M8X45-U1 5 12/2015 07129907068 ENDED
04 Self-locking hex bolt M8X45-U1 5 07129909348
05 Control valve 1 11427585703 +core
06 Gasket ring A33X39-CU 1 07119963473
07 Cap 1 11137580714 $4.70
08 Cap 1 11137580715 $4.70
09 Cap 1 11137580713 $4.70
10 Cap 1 11137580712 $4.70
11 Acoustic seal for oil pan 1 01/2016 11138655772
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
