Rolls-Royce Ghost RR4 Ghost EWB Oil pan bottom part, oil level indicator

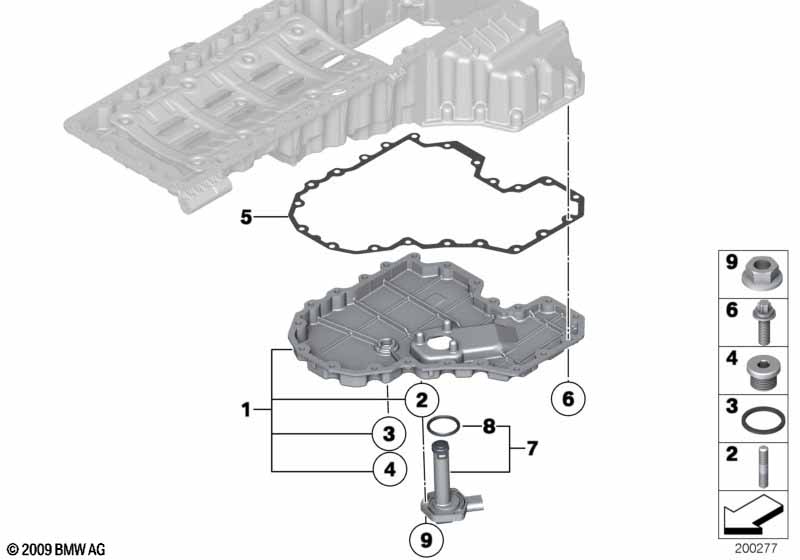

Oil pan bottom part, oil level indicator
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil Pan 1 11137578303 +core
Required for repair
-- Loctite 5970 liquid sealant 50ML 1 83190404517 $23.40
02 Stud bolt M6X30-ZNNIV SI 3 07129904544 $1.42
03 Gasket ring A18X22-CU 1 07119963308 $0.25
04 Screw plug M18X1,5-ZNNIV 1 07119905428 $11.47
05 Gasket Steel 1 11137578304
Required for repair
-- ASA-Bolt M8X25-U1-8.8 21 07129906905 $0.56 ENDED
06 ASA-Bolt M8X25-U1-8.8 21 09/2015 07129906905 $0.56 ENDED
06 Self-locking hex bolt M8X25-U1-8.8 21 07129909333
Before replacing the oil level sensor
always note PuMA measure 29604954!
07 Oil levelling sensor 1 12617607910
08 Gasket ring 1 12611744292 $6.42
09 Hex nut M6-8-ZNNIV SI 3 07119905544 $0.64
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
