Rolls-Royce Ghost RR4 Ghost EWB Valve timing gear - camshaft/valves

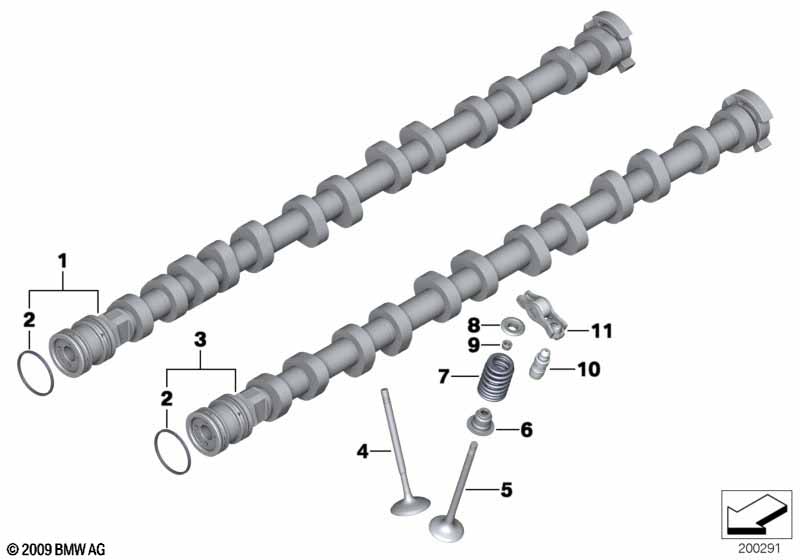

Valve timing gear - camshaft/valves
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Inlet camshaft ZYL. 1-6 1 11317583230
01 Inlet camshaft ZYL. 7-12 1 11317583234
02 Rectangring 8 11311705512 $5.62 +core
03 Camshaft exhaust ZYL. 1-6 1 11317583232
03 Camshaft exhaust ZYL. 7-12 1 11317583236
04 Intake valve D=33,2/5,92MM 24 07/2015 11347573354 ENDED
04 Intake valve D=33,2/5,92MM 24 11348638405
05 Exhaust valve D=29,0/5,92MM 24 07/2015 11347573355 ENDED
05 Exhaust valve D=29,0/5,92MM 24 11348638404
06 Repair kit valve seal ring 2 12/2016 11340039496 ENDED
06 Repair kit valve seal ring 2 11340053504
07 Valve spring 48 11347572451 $7.88
08 Upper spring plate 48 06/2015 11347504271 $3.77 ENDED
08 Upper spring plate 48 11347614134
09 Valve collet D=6 96 11341461405 $1.34
10 Alignment element 48 11338679835
11 Roller drag lever 48 11337557284 $33.04
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
