Rolls-Royce Ghost RR4 Ghost EWB Lubrication system/Oil pump with drive

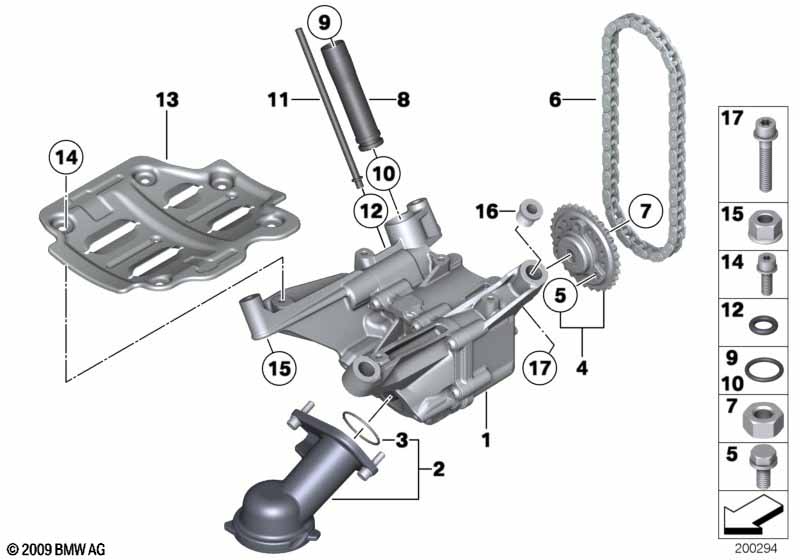

Lubrication system/Oil pump with drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil pump 1 11417612777
02 Suction pipe 1 11417585603
03 Profile-gasket 1 11417562090 $4.06
04 Sprocket 1 11417568820 $30.94
05 Hex bolt 3 11417641097
06 Chain 1 11417572531 $30.08
07 Hex nut M10 1 11417555245 $0.68
08 Oil pipe inlet 1 11417583667
09 O-ring 20,5X2,5MM 1 11417584785
10 O-ring 18,0X2,5MM 1 11421741129 $1.81
11 Oil pipe 1 11417583668
12 O-ring 6,0X2,5 1 11421713597 $1.29
13 Oil deflector 1 11417581556
14 Torx-bolt with washer M6X16-8.8-ZNNIV 5 07129904819 $0.38
15 Hex nut 2 11417549699 $0.48
16 Guide support 1 64557550045
17 ISA screw M8X45 ZNNIV SI 2 07129905691 $0.71
