Rolls-Royce Ghost RR4 Ghost EWB Exhaust manifold

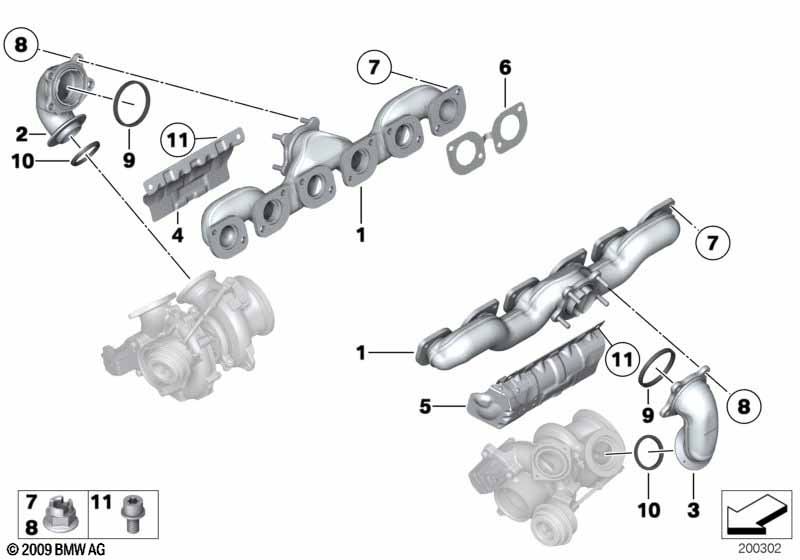

Exhaust manifold
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exhaust manifold 2 11627561574
02 Intermediate pipe ZYL. 1-6 1 11627561575
03 Intermediate pipe ZYL. 7-12 1 11627561576
04 Heat shield, exhaust manifold ZYL. 1-6 1 11657562134
05 Heat shield, exhaust manifold ZYL. 7-12 1 11657562135
06 Gasket 6 11627561571
Required for repair
-- Hex nut wiht flange 24 11627576992 $2.67
07 Hex nut wiht flange 24 11627576992 $2.67
08 Hex nut wiht flange 8 11627576992 $2.67
09 Gasket D=74,5MM 2 11627561965
Required for repair
-- Hex nut wiht flange 8 11627576992 $2.67
10 Gasket D=56,5MM 2 11627561961
