Rolls-Royce Ghost RR4 Ghost EWB Hydro steering-oil pipes

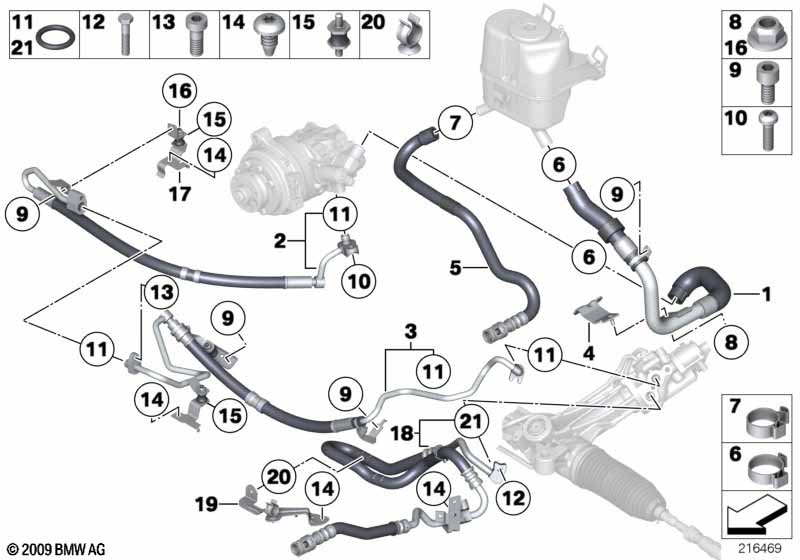

Hydro steering-oil pipes
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Suction pipe 1 32416850664
02 Expansion hose 1st part PART 1 1 32416782509
03 Expansion hose 2nd part PART 2 1 04/2014 32416795315 ENDED
03 Expansion hose 2nd part PART 2 1 32416869101
04 Bracket, suction line, steering 1 32416782508
05 radiator return line 1 32416795453
06 Hose clamp D= 25MM 2 32416763470 $1.27
07 Hose clamp 1 32416751127 $1.12
08 Self-locking hex nut M6-8-ZNNIV SI 1 07119905949 $0.24
09 ISA screw M6X12-8.8-ZNNIV 3 07129905867
10 ISA screw M8X25-10.9 1 32416783049
11 O-ring 11X1,8 HNBR 3 32416788696 $5.00
12 Hex bolt M8X40-8.8-ZNS3 1 07119902910 $2.05
13 Fillister-head screw M8X20-8.8-ZNS3 1 07119904375 $0.47
14 Torx screw, self-threading M6X13-ZNNIVSI 4 31146786689
15 Rubber Mounting H=17 3 32416769256
only in conjunction with
-- Self-locking hex nut M6-8-ZNNIV SI 2 07119905949 $0.24
16 Self-locking hex nut M6-8-ZNNIV SI 6 07119905949 $0.24
17 Bracket, expansion hose 1 32416792820
18 Return pipe 1 32416798099
19 Bracket, return line 1 32416792821
20 Hose clamp 2 11727511099 $0.83
21 O-ring 11X1,8 HNBR 1 32416788696 $5.00
Notes
  • ENDED = the part has been discontinued (no longer available).
