Rolls-Royce Ghost RR4 Ghost EWB Rear-axle-drive

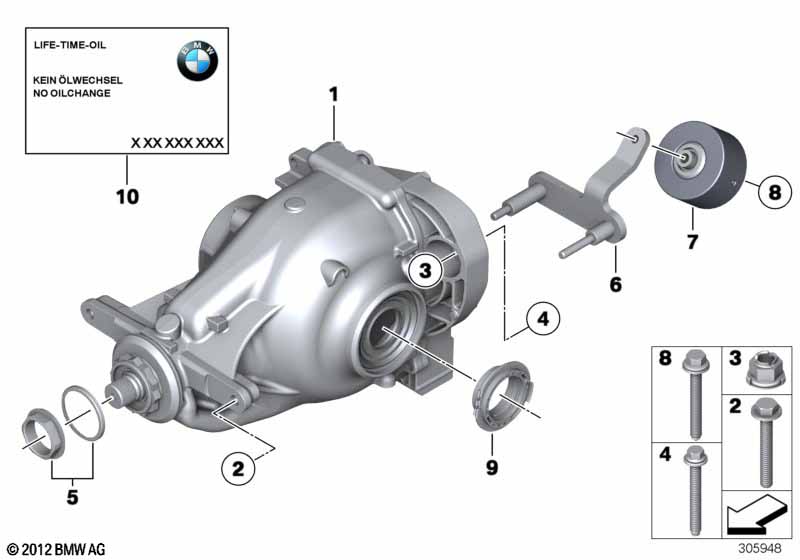

Rear-axle-drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear-axle-drive I= 2,81 1 33107633828
only in conjunction with
-- Lock Ring D=26,7 1 33131213997 $0.29
Important!
Note Repair Manual
-- Assembly ring 1 33137555749 $9.77
Important!
Note Repair Manual
02 Hex bolt with washer M12X1,5X110 2 07119906460
03 Combination nut M14X1,5-10ZNNIV 1 33306787062 $1.88
04 Hex bolt with washer M14X1,5X133ZNS3 1 33176760336 $8.88
05 Repair kit insert nut M39X1,5X20 1 33127607158
Important!
Note Repair Manual
06 Bracket, vibration absorber 1 01/2012 33104608456 ENDED
only in conjunction with
-- ASA-Bolt M10X90 ZNS3 2 01/2012 23007603855
06 Bracket, vibration absorber 1 33107632336
07 Vibration absorber right 42HZ 1 33506852836
08 Hex bolt with washer M12X85-10-ZNS3 1 07119905619 $2.09
09 Assembly ring 1 33137555749 $9.77
10 Stick-on label DE, EN 1 01399791197 $4.25
Notes
  • ENDED = the part has been discontinued (no longer available).
