Rolls-Royce Ghost RR4 Ghost EWB Air spring strut, rear/control units

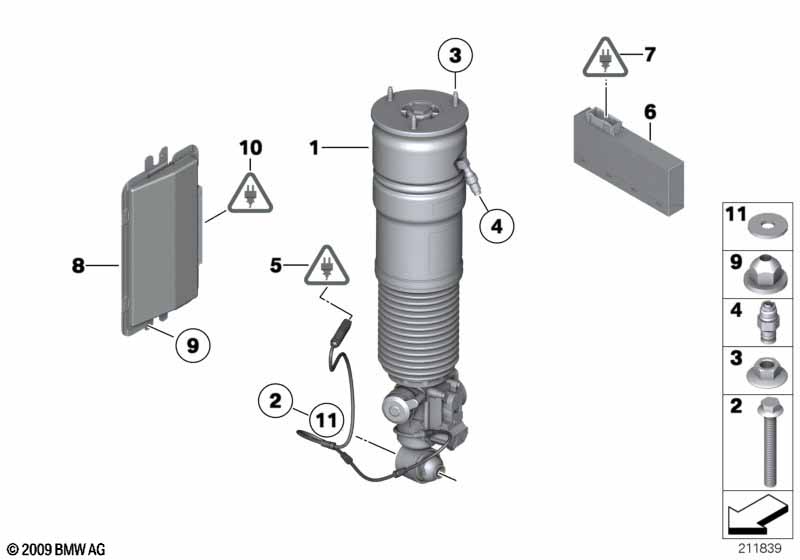

Air spring strut, rear/control units
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 RP air suspension strut rear left 1 09/2011 37126851605
01 RP air suspension strut rear right 1 09/2011 37126851606
02 Hex bolt with washer M16X1,5X110 2 07119907031 $4.80
03 Hex nut wiht flange M8-10 ZNS3 6 31316771889 $0.55
04 Screwed connection D=4MM 2 37221092403 $3.00
06 Control unit, air suspension 1 37146862827
only in conjunction with
-- Relay, make contact, black 1 61366901469 $13.96 +core
08 Control unit for VDC 1 07/2014 37146868931 ENDED
08 Control unit for VDC 1 11/2014 37146871062 ENDED
08 Control unit for VDC 1 03/2015 37146873398 ENDED
08 Control unit for VDC 1 07/2015 37146874669 ENDED
08 Control unit for VDC 1 11/2015 37146875389 ENDED
08 Control unit for VDC 1 03/2016 37146876819 ENDED
08 Control unit for VDC 1 03/2017 37146883898 ENDED
08 Control unit for VDC 1 37146887311
09 Cap nut M5 2 51711934930 $0.23
11 Washer 16-200-HV-ZNS3 2 03/2010 07119906046 $0.92
Important!
only applies to
Bolt M16x115mm
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
