6' F13 650iX 4.0 Lateral trunk floor trim panel

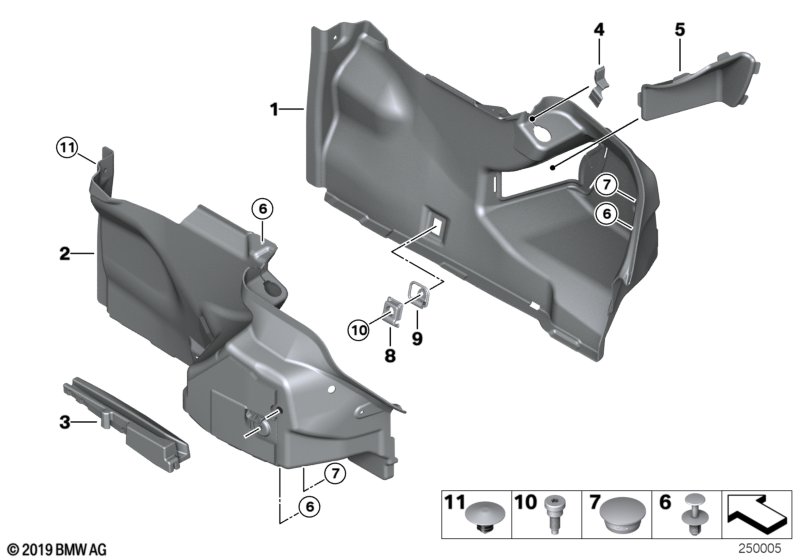

Lateral trunk floor trim panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trim, wheelhousing, right 1 51477224864
02 Trim, wheelhousing, left 1 51477224863
03 Foam insert, left 1 51477255879 NoS
04 Covering left 1 51487292045
04 Covering right 1 51487292046
05 Cover, power distribution box 1 51477234048
06 Expanding rivet D = 8MM 6 51471911992 $0.40
07 Cap D=22MM 4 51417307969
08 Cover, fastening loop 2 51477234944
09 Tie-down ring 2 51477129196 $7.23
10 Socket head cap screw with shoulder 2 51477130768 $1.09
11 Blind plug SCHWARZ 2 33321128339 $0.60
Notes
  • NoS = No Stock (Part, central, not in stock.)
