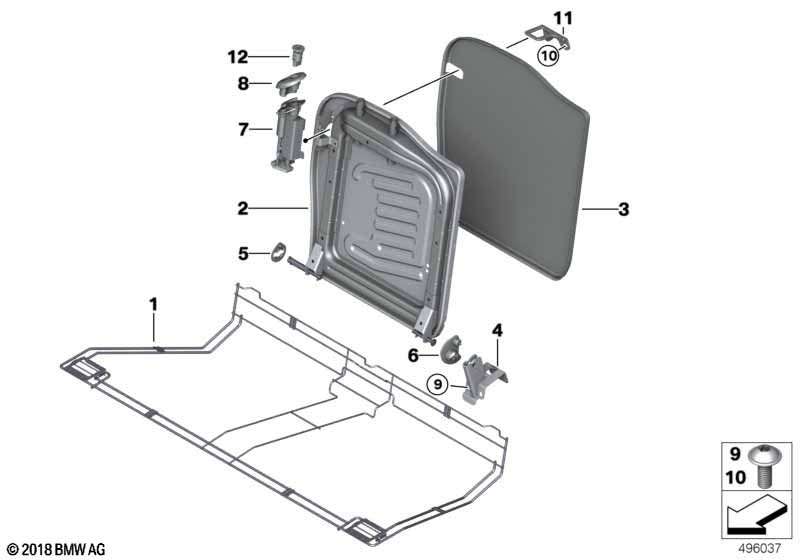

MINI Cabrio R57 LCI One Seat, rear, seat frame, load-through

Seat, rear, seat frame, load-through
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Seat frame 1 52202751374 $61.97
02 Backrest frame, left 1 52209128593 $197.63
02 Backrest frame, right 1 52209128594 $197.63
03 Trim backrest, left 1 52209128589
03 Trim backrest, right 1 52209128590
04 Center Mount 1 52209128586
05 Left center mounting cover 1 52209130815
05 Right center mounting cover 1 52209130816
06 Bushing 2 52102752602 $1.50
07 Lock left 1 52209128587 $46.10
07 Lock right 1 52209128588 $46.10
08 Housing, lock cylinder, left 1 52202758415
08 Housing, lock cylinder, right 1 52202758416
08 Cover, lock cylinder, left 1 52209144367 $6.50
08 Cover, lock cylinder, right 1 52209144368
09 Fillister head screw M8X30 3 52207056516 $1.00
10 Fillister head screw M10X26 2 07146962565 $0.73
11 Catch bracket 2 72112756505
12 Lock (with key code) 2 51167133603 $49.37
