X5 E70 LCI X5 35dX Intake manifold-supercharg.air duct/AGR

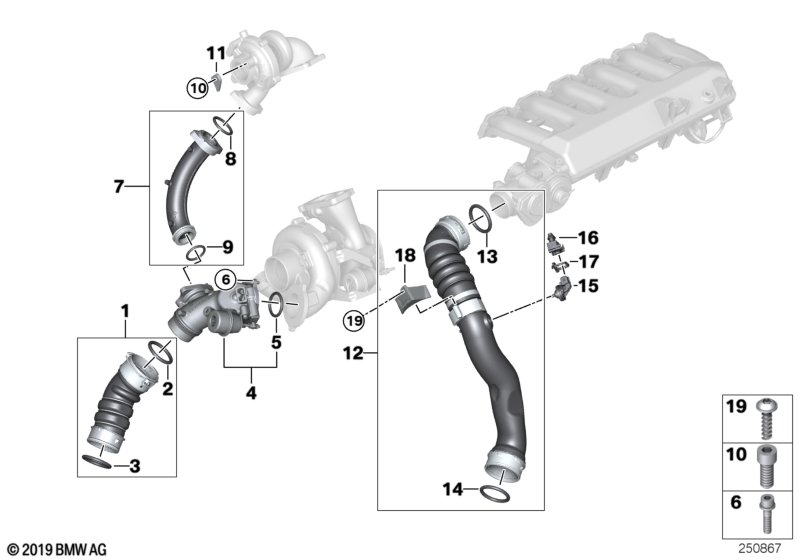

Intake manifold-supercharg.air duct/AGR
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Charge air line 1 11617799873 $239.17 +core
02 Preformed seal 1 06/2013 11618506786 $8.69 ENDED
02 Preformed seal 1 13718596850
03 Preformed seal 1 11617796622 $6.65
04 Bypass valve 1 11657802592 $578.41
05 O-ring 76X2 1 07119908067
06 Internal Torx screw with washer M6X25-U1-8.8 3 07129905558 $0.44
07 Connection pipe 1 11657802590 $289.22
08 O-ring D40,64X5,33 1 11657795047 $13.63
09 O-ring D40,64X5,33 1 11657795047 $13.63
10 ISA screw M6X16-8.8-ZNNIV 3 07129905536 $0.64
11 Mounting panel 3 11657794574 $17.80
12 Charge air line 1 11618506079 $239.17
only in conjunction with
-- Intake air temperature sensor 1 13627812741 $25.98
13 Preformed seal 59,0X67,2X6,2 1 11617790547 $8.20
14 Preformed seal 1 11617796621 $6.65
15 Intake air temperature sensor 1 13627812741 $25.98
17 Twist protection 1 11617807096 $0.58
18 Holder 1 11617802222 $3.32
19 Screw self-tapping D6X20 ZNS3 1 17117536971 $1.12
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
