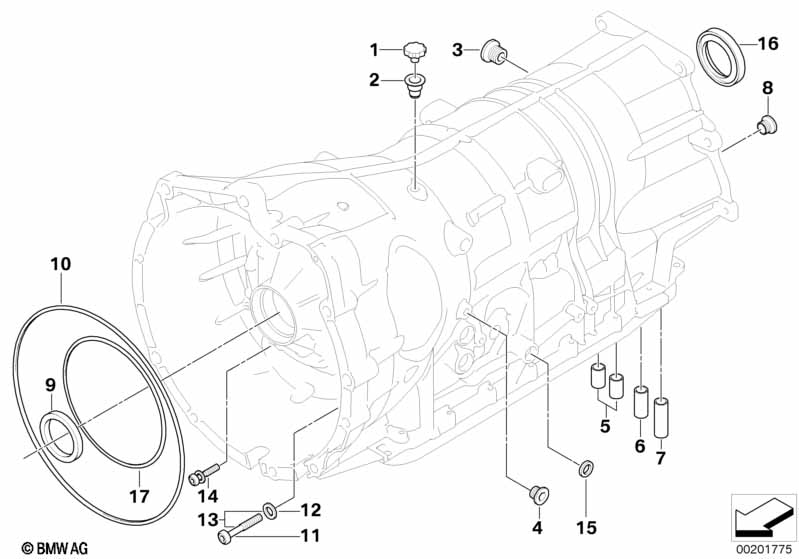

X5 E70 LCI X5 35dX GA6HP26Z hous. attachm. parts, AWD

GA6HP26Z hous. attachm. parts, AWD
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Vent cover 1 24101422142 $1.95
02 Vent pipe 1 24101422141 $5.93
03 Screw Plug With Gasket Ring M18X1,5 1 24117552349 $7.65
04 Screw Plug With Gasket Ring M10X1 1 24117552351 $4.60
05 Sealing sleeve L=25,9MM 2 24107519314 $5.33
06 Sealing sleeve L=31,4MM 1 24107519315 $5.33
07 Sealing sleeve L=40,7MM 1 24107520715 $6.05
08 Screw Plug With Gasket Ring M12X1,5 1 24117552350 $6.35
09 Shaft seal 45X58X7 1 24317519352 $13.53
10 O-ring 210X3 1 24311219166 $10.24
13 Torx screw with round seal ring M6X52 13 24317588743 $1.95
14 Torx screw with round seal ring M6X22 1 24317588744
15 Shaft seal 10X18X5 1 24147571213 $5.20
16 Shaft seal 39X72X8 1 24137542885 $15.72
17 O-ring 128X3 1 24201217321 $9.32
