X5 E70 LCI X5 M50dX Exterior mirror (S430A)

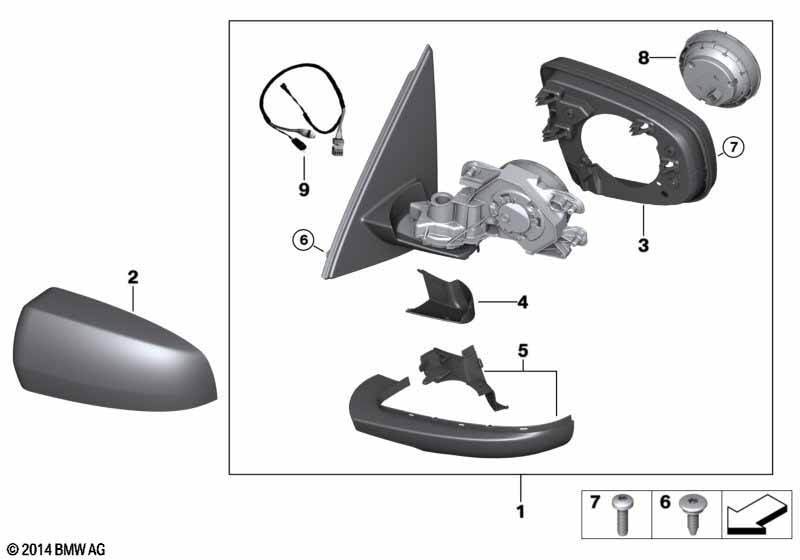

Exterior mirror (S430A)
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Interior/outside mirror with auto dip

S430A=Yes
01 heated outside mirror, left 1 04/2008 51167179641 $583.50 ENDED
01 heated outside mirror, right 1 04/2008 51167179642 $760.85 ENDED
01 heated outside mirror, left 1 04/2008 05/2009 51167282721
01 heated outside mirror, right 1 04/2008 05/2009 51167282722
01 heated outside mirror, left 1 05/2009 51167179641 $583.50 ENDED
01 heated outside mirror, right 1 05/2009 51167179642 $760.85 ENDED
For vehicles with
Backup camera and Top View

S3AHA=Yes
01 heated outside mirror, right TOP VIEW 1 09/2010 51167232542 ENDED
only in conjunction with
-- HSD wire L= 380 MM 1 09/2010 61119244256
01 heated outside mirror, right TOP VIEW 1 09/2010 51167282736
only in conjunction with
-- HSD wire L= 380 MM 1 09/2010 61119244256
01 heated outside mirror, left TOP VIEW 1 51167232541 ENDED
only in conjunction with
01 heated outside mirror, left TOP VIEW 1 51167282735
only in conjunction with
-- HSD wire L= 380 MM 1 61119244256
For vehicles with
National version japan

L807A=Yes
01 heated outside mirror, left 1 51167179641 $583.50 ENDED
01 heated outside mirror, right 1 51167282726
02 Cover, mirror, left ALU SATINIERT 1 51162182697
02 Cover, mirror, right ALU SATINIERT 1 51162182698
02 Outside mirror cover cap, left, primed 1 51167180725 $68.44
02 Outside mirror cover cap, right, primed 1 51167180726 $68.44
When ordering indicate color code
02 Outside mirror covering cap,painted rig. CODE - UNI/MET. 1 51160430326 ENDED
02 Outside mirror covering cap,painted left CODE - UNI/MET. 1 51160430327 ENDED
03 Frame left 1 51167180737 $31.38
03 Frame right 1 51167180738 $31.38
04 Set of covers mirror baseplate 1 51167180735 $12.76
05 Cover, detent mechanism, left 1 51167180729 $14.39
05 Cover, detent mechanism, right 1 51167180730 $14.39
For vehicles with
Backup camera and Top View

S3AHA=Yes
05 Cover, detent mechanism, left TOP VIEW 1 51167233063 $15.11
05 Cover, detent mechanism, right TOP VIEW 1 51167233064 $15.11
07 Torx screw 11 51167180727 $0.17
08 Drive, outside mirror MAGNA 2 04/2008 67136973723 $105.38
Only suitable with manufacturer MAGNA
08 Drive, outside mirror MAGNA 2 04/2008 04/2009 67136973723 $105.38
08 Drive, outside mirror MAGNA 2 04/2008 67136973723 $105.38
Only suitable with manufacturer EATON
08 Drive, outside mirror EATON 2 04/2008 04/2009 67137187261 $105.38
08 Drive, outside mirror EATON 2 04/2008 67137187261 $105.38
For vehicles with
National version japan

L807A=Yes
08 Drive, outside Memory mirror 2 67137187263 $188.25
For vehicles with
Comfort seat with memory
or
Seat adjuster, electric, with memory

S456A=Yes

S459A=Yes
08 Drive, outside Memory mirror MAGNA 2 04/2008 67136973724 $188.25
For vehicles with
Comfort seat with memory
or
Seat adjuster, electric, with memory
Only suitable with manufacturer MAGNA

S456A=Yes

S459A=Yes
08 Drive, outside Memory mirror MAGNA 2 04/2008 04/2009 67136973724 $188.25
For vehicles with
Comfort seat with memory
or
Seat adjuster, electric, with memory
Only suitable with manufacturer EATON

S456A=Yes

S459A=Yes
08 Drive, outside Memory mirror EATON 2 04/2008 04/2009 67137187262 $188.25
For vehicles with
Backup camera and Top View
and
Comfort seat with memory
and
Seat adjuster, electric, with memory

S3AHA=Yes

S456A=Yes

S459A=Yes
08 Drive, outside Memory mirror EATON 2 67137187262 $188.25
For vehicles with
Backup camera and Top View
and
Comfort seat with memory
and
Seat adjuster, electric, with memory

S3AHA=Yes

S456A=Yes

S459A=No
08 Drive, outside Memory mirror EATON 2 67137187262 $188.25
For vehicles with
Backup camera and Top View
and
Comfort seat with memory
and
Seat adjuster, electric, with memory

S3AHA=Yes

S456A=No

S459A=Yes
08 Drive, outside Memory mirror EATON 2 67137187262 $188.25
For vehicles with
Interior/outside mirror with auto dip
or
Comfort seat with memory
or
Seat adjuster, electric, with memory

S430A=Yes

S456A=Yes

S459A=Yes
08 Drive, outside Memory mirror MAGNA 2 04/2008 67136973724 $188.25
For vehicles with
Comfort seat with memory
and
Seat adjuster, electric, with memory

S456A=No

S459A=No
09 Wiring harness, electr. dr mirror, left 1 67136973721 $19.43
09 Wiring harness, electr. dr mirror, right 1 67136973722 $19.43
Notes
  • ENDED = the part has been discontinued (no longer available).
