Alfombrilla de goma for BMW 7 Series F02 740Li (2012)

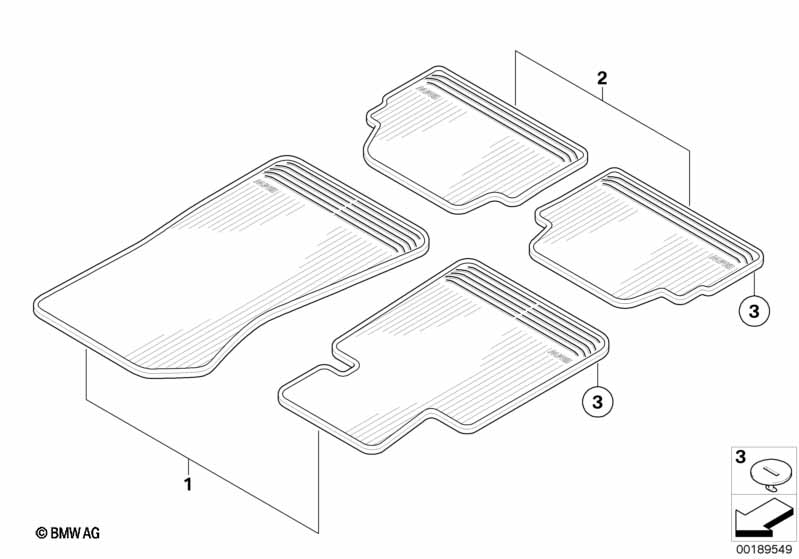

This Alfombrilla de goma technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Para vehículos con Version para China |
L8AAA=No |
||||||||
| 02 | Alfombrillas todo tiempo trasero | SW | 1 | 07/2012 | 51472409277 | Finalizado | Shop at ECS Tuning | |||
| 02 | Juego alfombr.d.gom. trasera | SCHWARZ | 1 | 51472148552 | $45.75 | Finalizado | Shop at ECS Tuning | |||
| 02 | Juego alfombr.d.gom. trasera | BLACK, AB 07/12 | 1 | 51472327552 | Finalizado | Shop at ECS Tuning | ||||
| 03 | Elemento velcro con sujeción de bayoneta | D62MM/L16MM | 8 | 07149166608 | $2.17 | Shop at ECS Tuning | ||||
Notas
- Finalizado = La pieza ya es descontinuada.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 740Li Alfombrilla de goma?
- This technical diagram illustrates the Alfombrilla de goma within the Reequipamiento/conversión/accesorios group for the 7 Series F02 740Li produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Alfombrillas todo tiempo trasero (Part #51472409277).
- Which models use the hardware listed in this Alfombrilla de goma?
- The hardware and components featured in the Alfombrilla de goma are specific to the 7 Series F02 740Li produced during 2012. These technical specifications ensure that parts like the Alfombrillas todo tiempo trasero (51472409277) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Alfombrilla de goma assembly?
- Each item in the Alfombrilla de goma corresponds to the numbered list below the illustration. For the 7 Series F02 740Li, you can identify the Alfombrillas todo tiempo trasero by locating its position on the schematic, which then links to the official BMW part number 51472409277 for the Reequipamiento/conversión/accesorios section.
