Mando de depresión-AGR for BMW 3 Series E30 318i (1982)

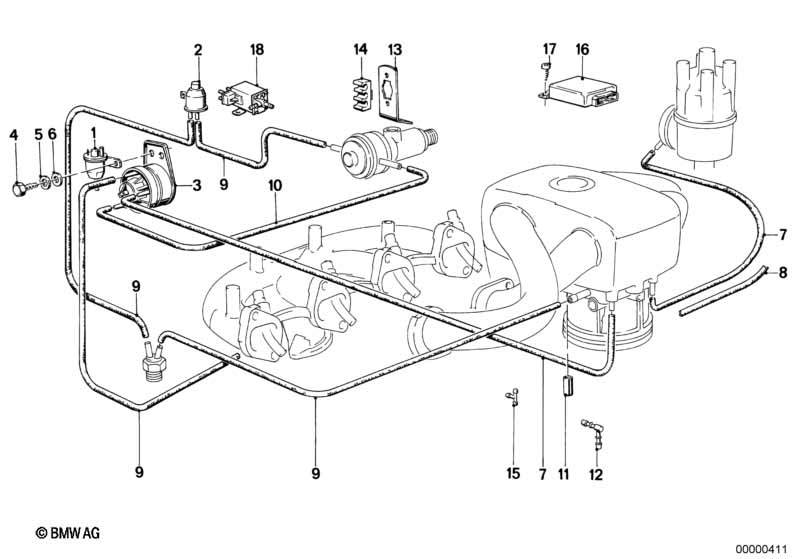

This Mando de depresión-AGR technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con Version para Suiza o Version para Australia o Version para suecia |
L804A=Sí L810A=Sí V010A=Sí |
|||||||||
| 07 | Tubo flex.de depr.blanco | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 08 | Tubo flex.de depr.negro | 3,3X1,75 | X | 51731257971 | $4.59 | Finalizado | Shop at ECS Tuning | |||
| 08 | Tubo flex.de depr.negro | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 10 | Tubo flexib.de depression azul | 3,3X1,75MM | X | 51731259953 | $4.35 | Finalizado | Shop at ECS Tuning | |||
| 11 | Caperuza de cierre | D=3,5MM | X | 11611437560 | $3.39 | Shop at ECS Tuning | ||||
| Para vehículos con Version para Suiza o Version para suecia |
L804A=Sí V010A=Sí |
|||||||||
| 15 | Pieza-T | 1 | 11731263567 | Finalizado | Shop at ECS Tuning | |||||
| 17 | Eletr.valvula | 1 | 11741277973 | $87.56 | Shop at ECS Tuning | |||||
| Para vehículos con Version para Suiza o Version para Australia o Version para suecia |
L804A=Sí L810A=Sí V010A=Sí |
|||||||||
| 18 | Eletr.valvula | 1 | 11741277974 | $58.27 | Shop at ECS Tuning | |||||
Notas
- Finalizado = La pieza ya es descontinuada.
