Carter de aceite/miril.para niv.d.aceite for BMW 3 Series E36 325i (1991)

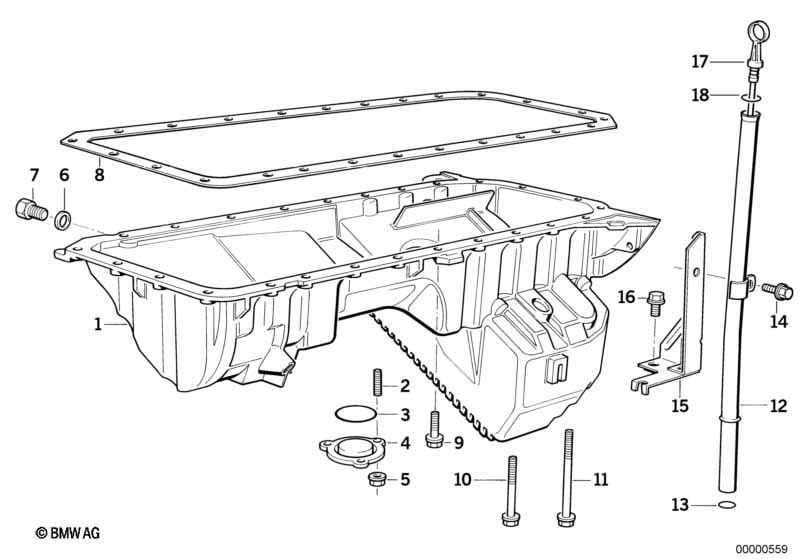

This Carter de aceite/miril.para niv.d.aceite technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carter de aceite | 1 | 11131735937 | $404.67 | Shop at ECS Tuning | |||||
| 02 | Tornillo de pasador | M6X28-ZN | 3 | 07129908111 | $0.63 | Shop at ECS Tuning | ||||
| 03 | Anillo obturador | 40X4 | 1 | 12611277129 | $2.09 | Shop at ECS Tuning | ||||
| 04 | Cierre de tapa | 1 | 11131726357 | $7.64 | Finalizado | Shop at ECS Tuning | ||||
| 05 | Tuerca hexagonal con placa | AM6-8-ZNNIV SI | 3 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 06 | Anillo obturador | A12X17-AL | 1 | 07119963150 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Tornillo de cierre | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 08 | Junta metal | 1 | 11131437237 | $48.50 | Shop at ECS Tuning | |||||
| 09 | Tornillo hexagonal con arandela | M6X20-Z3 | X | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 10 | Tornillo hexagonal con arandela | M6X60-Z3 | 2 | 07119913001 | $0.63 | Finalizado | Shop at ECS Tuning | |||
| 10 | Tornillo hexagonal | M6X60 | 2 | 07119902994 | Shop at ECS Tuning | |||||
| solo en combinacion con | ||||||||||
| -- | Arandela elastica | B6 | 2 | 07119932072 | $0.09 | Finalizado | Shop at ECS Tuning | |||
| 11 | Tornillo hexagonal con arandela | M6X95-U1 | 2 | 07119905433 | $3.35 | Shop at ECS Tuning | ||||
| 12 | Tubo de guía | 1 | 11431735276 | $40.73 | Shop at ECS Tuning | |||||
| 13 | Anillo obturador toroidal | 14,5X3 | 1 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
| 14 | Tornillo hexagonal con arandela | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Soporte | 1 | 11431735278 | $4.04 | Shop at ECS Tuning | |||||
| 16 | Tornillo hexagonal con arandela | M8X12-Z3-1 | 1 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| 17 | Varilla indicadora | 1 | 11431427993 | $15.30 | Shop at ECS Tuning | |||||
| 18 | Anillo obturador toroidal | 9X2,2 | 1 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
Notas
- Finalizado = La pieza ya es descontinuada.
