Culata piezas adicionales for BMW R45-R65LS..78-85 R65LS

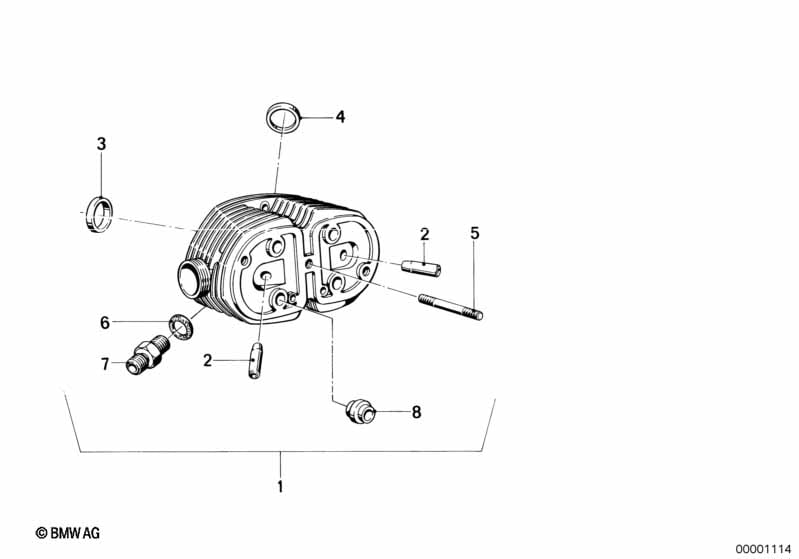

This Culata piezas adicionales technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Culata izquierda | SLS | 1 | 09/1980 | 11121338208 | Finalizado, +core | Shop at ECS Tuning | |||
| 01 | Culata derecho | SLS | 1 | 09/1980 | 11121338209 | $846.83 | +core | Shop at ECS Tuning | ||
| 02 | Guia de valvula | 14.06 | 4 | 11121338709 | $27.16 | Shop at ECS Tuning | ||||
| 02 | Guia de valvula | 14.25 | 4 | 11121338710 | $27.16 | Shop at ECS Tuning | ||||
| 03 | Anillo de asiento de valvula escape | +0,2 | 2 | 09/1980 | 11121337523 | $34.20 | Finalizado | Shop at ECS Tuning | ||
| 03 | Anillo de asiento de valvula escape | +0,4 | 2 | 09/1980 | 11121337524 | Finalizado | Shop at ECS Tuning | |||
| 04 | Anillo d.asien.d.valvula admision | +0.2 | 2 | 09/1980 | 11121337525 | $15.14 | Shop at ECS Tuning | |||
| 04 | Anillo d.asien.d.valvula admision | +0,4 | 2 | 09/1980 | 11121337526 | $15.14 | Finalizado | Shop at ECS Tuning | ||
| 05 | Tornillo de pasador | M8X70 | 2 | 07129908142 | $0.41 | Shop at ECS Tuning | ||||
| 06 | Anillo obturador | A16X20-AL | 2 | 07119963252 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Racor | 10X16 | 2 | 07119972501 | $13.44 | Shop at ECS Tuning | ||||
| 08 | Soporte | 8 | 11121261405 | $17.98 | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
