Ciguenal/biela/piezas adicionales for BMW R45-R65LS..78-85 R45

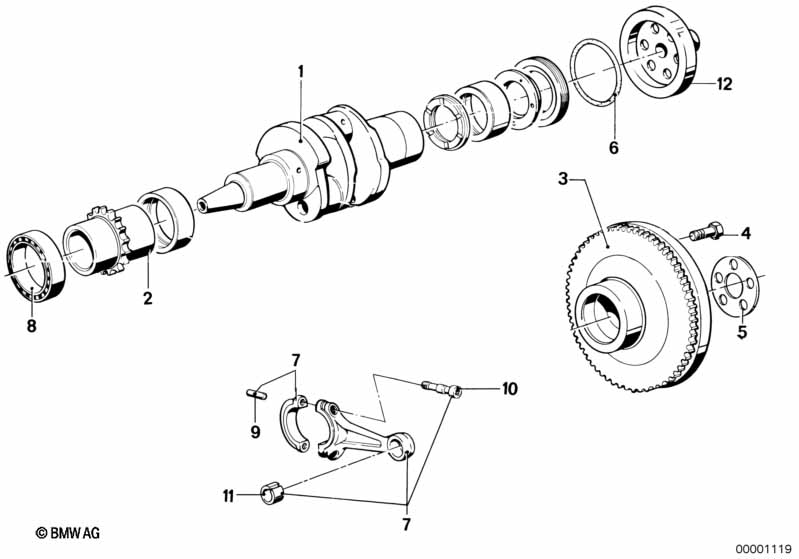

This Ciguenal/biela/piezas adicionales technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ciguenal | 1 | 11211336439 | +core | Shop at ECS Tuning | |||||
| 02 | Rueda de cadena | 1 | 11211335586 | $47.58 | +core | Shop at ECS Tuning | ||||
| 03 | Disco volante | 1 | 09/1980 | 11221335975 | $532.33 | +core | Shop at ECS Tuning | |||
| 04 | Tornillo hexagonal | M11X1.5 | 5 | 11221262060 | $2.52 | Shop at ECS Tuning | ||||
| 05 | Arandela | 1 | 11221335366 | $5.34 | Shop at ECS Tuning | |||||
| 06 | Anillo obturador toroidal | 59X3 | 1 | 11221337093 | Shop at ECS Tuning | |||||
| 07 | Biela | 541G | 2 | 11241338160 | +core, SI 112885359 | Shop at ECS Tuning | ||||
| 07 | Biela | 547G | 2 | 11241338161 | Finalizado, +core, SI 112885359 | Shop at ECS Tuning | ||||
| 07 | Biela | 553G | 2 | 11241338162 | $204.14 | Finalizado, +core, SI 112885359 | Shop at ECS Tuning | |||
| 08 | Rodam.radial rigido | 16007 C3 | 1 | 07119981722 | $29.91 | Shop at ECS Tuning | ||||
| 09 | Pasador cilindrico | 4 | 11241254819 | $0.61 | Shop at ECS Tuning | |||||
| 10 | Tornillo de biela | 4 | 11241337553 | $5.02 | Shop at ECS Tuning | |||||
| 11 | Casquillo de biela | 2 | 11240618100 | $2.47 | Shop at ECS Tuning | |||||
| 11 | Casquillo de biela | +0,2 | 2 | 11241338457 | Finalizado | Shop at ECS Tuning | ||||
| 12 | Anillo de rodadura | 1 | 09/1980 | 11221337284 | $83.21 | Shop at ECS Tuning |
Notas
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
- SI = Service-Information (Información Servicio)
- Finalizado = La pieza ya es descontinuada.
