Valvulas, mando de las valvulas,balancin for BMW R45-R65LS..78-85 R45

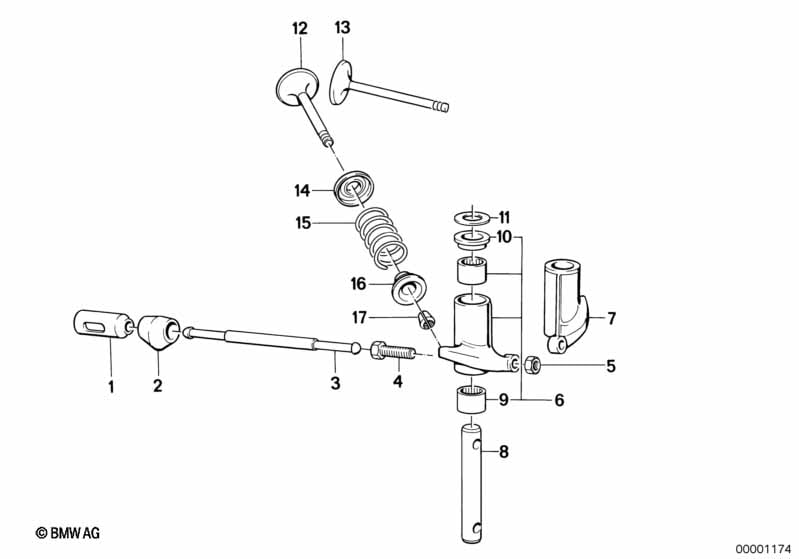

This Valvulas, mando de las valvulas,balancin technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | FG* 01/85 | |||||||||
| 01 | Biela de empuje | 4 | 11321335087 | $64.41 | Finalizado | Shop at ECS Tuning | ||||
| 02 | Manguito de goma | 4 | 11111335090 | $3.84 | Shop at ECS Tuning | |||||
| 03 | Vara de la biela de empuje | 4 | 11321335088 | $37.85 | Finalizado | Shop at ECS Tuning | ||||
| 04 | Tornillo | 4 | 11331744328 | $19.24 | Shop at ECS Tuning | |||||
| 05 | Tuerca | M8X1-SW12 | 4 | 11331744331 | $1.15 | Shop at ECS Tuning | ||||
| 06 | Balancin | NO.2 | 2 | 11331337715 | $122.95 | +core | Shop at ECS Tuning | |||
| 07 | Balancin | NO.1 | 2 | 11331337713 | $122.95 | +core | Shop at ECS Tuning | |||
| 08 | Pivote de balancin | 4 | 11331336942 | $26.38 | +core | Shop at ECS Tuning | ||||
| 09 | cojinete de agujas | 15.5X20X18 | 8 | 11331261712 | $29.92 | Shop at ECS Tuning | ||||
| 10 | Cojinete axial | 4 | 11331337717 | $3.26 | Shop at ECS Tuning | |||||
| 11 | Arandela distanciadora | 0.30 | X | 11331337718 | $1.49 | Shop at ECS Tuning | ||||
| 11 | Arandela distanciadora | 0.25 | X | 11331337719 | $1.49 | Shop at ECS Tuning | ||||
| 11 | Arandela distanciadora | 0.20 | X | 11331337720 | $1.49 | Shop at ECS Tuning | ||||
| 11 | Arandela distanciadora | 0.35 | X | 11331337721 | $1.49 | Shop at ECS Tuning | ||||
| 11 | Arandela distanciadora | 0.50 | X | 11331338190 | $1.49 | Shop at ECS Tuning | ||||
| 12 | Valvula de escap. | D=32X7.0-45° | 2 | 11341335093 | $78.29 | +core | Shop at ECS Tuning | |||
| 13 | Valvula de admis. | D=34X7.0-45° | 2 | 11341335091 | $55.31 | +core | Shop at ECS Tuning | |||
| 14 | Platillo | 4 | 11341338281 | $4.47 | Shop at ECS Tuning | |||||
| 15 | Muelle de la valvula | 4 | 11341263873 | Shop at ECS Tuning | ||||||
| 16 | Platillo superior | 8 | 11341280649 | $3.45 | Shop at ECS Tuning | |||||
| 17 | Semicono de tope | 8 | 11341307136 | $1.08 | Shop at ECS Tuning | |||||
Notas
- Finalizado = La pieza ya es descontinuada.
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
