Mecan.cigu.-ocigue.con casquil.de cojin. for BMW 5 Series E34 525i (1987)

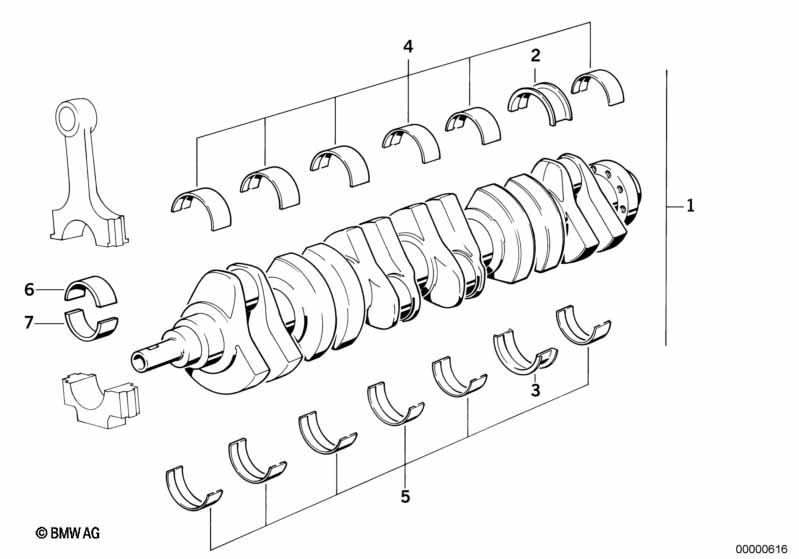

This Mecan.cigu.-ocigue.con casquil.de cojin. technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | AT-ciguenal con casquillos de cojinete | 1 | 11211713223 | $1183.10 | Finalizado | Shop at ECS Tuning | ||||
| 02 | Casquillo de cojinete con guia amarillo | 60,00MM(0) | 1 | 11211706829 | $27.36 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 3 | ||||||||||
| 02 | Casquillo de cojinete con guia verde | 60,00MM(0) | 1 | 11211706830 | $27.36 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 3 | ||||||||||
| 02 | Casquillo de cojinete con guia blanco | 60,00MM(0) | 1 | 11211706831 | $27.36 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 3 | ||||||||||
| 02 | Casquillo de cojinete con guia amarillo | 59,75MM(+0,25) | 1 | 11211706832 | $37.98 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 3 | ||||||||||
| 02 | Casquillo de cojinete con guia verde | 59,75MM(+0,25) | 1 | 11211706833 | $37.98 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 3 | ||||||||||
| 02 | Casquillo de cojinete con guia blanco | 59,75MM(+0,25) | 1 | 11211706834 | $37.98 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 3 | ||||||||||
| 02 | Casquillo de cojinete con guia amarillo | 59,50MM(+0,50) | 1 | 11211706855 | $37.98 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 3 | ||||||||||
| 02 | Casquillo de cojinete con guia verde | 59,50MM(+0,50) | 1 | 11211706856 | $37.98 | Finalizado | Shop at ECS Tuning | |||
| sólo en combinación con ítem 3 | ||||||||||
| 02 | Casquillo de cojinete con guia blanco | 59,50MM(+0,50) | 1 | 11211706857 | $37.98 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 3 | ||||||||||
| 03 | Casquillo de cojinete con guia amarillo | 60,00MM(0) | 1 | 11212241934 | $27.36 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 2 | ||||||||||
| 03 | Casquillo de cojinete con guia verde | 60,00MM(0) | 1 | 11212241935 | $27.36 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 2 | ||||||||||
| 03 | Casquillo de cojinete con guia blanco | 60,00MM(0) | 1 | 11212241936 | $27.36 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 2 | ||||||||||
| 03 | Casquillo de cojinete con guia amarillo | 59,75MM(+0,25) | 1 | 11212241937 | $37.98 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 2 | ||||||||||
| 03 | Casquillo de cojinete con guia verde | 59,75MM(+0,25) | 1 | 11212241938 | $37.98 | Finalizado | Shop at ECS Tuning | |||
| sólo en combinación con ítem 2 | ||||||||||
| 03 | Casquillo de cojinete con guia blanco | 59,75MM(+0,25) | 1 | 11212241939 | $37.98 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 2 | ||||||||||
| 03 | Casquillo de cojinete con guia amarillo | 59,50MM(+0,50) | 1 | 11212241940 | $37.98 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 2 | ||||||||||
| 03 | Casquillo de cojinete con guia verde | 59,50MM(+0,50) | 1 | 11212241941 | $33.48 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 2 | ||||||||||
| 03 | Casquillo de cojinete con guia blanco | 59,50MM(+0,50) | 1 | 11212241942 | $37.98 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 2 | ||||||||||
| 04 | Semicojinete amarillo | 60,00MM(0) | 6 | 11211706847 | $16.27 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 5 | ||||||||||
| 04 | Semicojinete verde | 60,00MM(0) | 6 | 11211706848 | $16.27 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 5 | ||||||||||
| 04 | Casquillo de cojinete blanco | 60,00MM(0) | 6 | 11211706849 | $16.27 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 5 | ||||||||||
| 04 | Semicojinete amarillo | 59,75MM(+0,25) | 6 | 11211706850 | $16.10 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 5 | ||||||||||
| 04 | Semicojinete verde | 59,75MM(+0,25) | 6 | 11211706851 | $15.88 | Finalizado | Shop at ECS Tuning | |||
| sólo en combinación con ítem 5 | ||||||||||
| 04 | Casquillo de cojinete blanco | 59,75MM(+0,25) | 6 | 11211706852 | $15.88 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 5 | ||||||||||
| 04 | Semicojinete amarillo | 59,50MM(+0,50) | 6 | 11211706864 | $15.88 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 5 | ||||||||||
| 04 | Semicojinete verde | 59,50MM(+0,50) | 6 | 11211706865 | $15.88 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 5 | ||||||||||
| 04 | Casquillo de cojinete blanco | 59,50MM(+0,50) | 6 | 11211706866 | $16.74 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 5 | ||||||||||
| 05 | Semicojinete amarillo | 60,00MM(0) | 6 | 11211717526 | $16.27 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 4 | ||||||||||
| 05 | Semicojinete verde | 60,00MM(0) | 6 | 11211717527 | $16.27 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 4 | ||||||||||
| 05 | Casquillo de cojinete blanco | 60,00MM(0) | 6 | 11211717528 | $16.27 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 4 | ||||||||||
| 05 | Semicojinete amarillo | 59,75MM(+0,25) | 6 | 11211717779 | $16.10 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 4 | ||||||||||
| 05 | Semicojinete verde | 59,75MM(+0,25) | 6 | 11211717780 | $15.88 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 4 | ||||||||||
| 05 | Casquillo de cojinete blanco | 59,75MM(+0,25) | 6 | 11211717781 | $15.88 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 4 | ||||||||||
| 05 | Semicojinete amarillo | 59,50MM(+0,50) | 6 | 11211717782 | $15.88 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 4 | ||||||||||
| 05 | Semicojinete verde | 59,50MM(+0,50) | 6 | 11211717783 | $15.88 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 4 | ||||||||||
| 05 | Casquillo de cojinete blanco | 59,50MM(+0,50) | 6 | 11211717784 | $16.74 | Shop at ECS Tuning | ||||
| sólo en combinación con ítem 4 | ||||||||||
| 06 | Semicojinete azul | 45,00MM(0) | 6 | 11241284850 | $15.98 | Shop at ECS Tuning | ||||
| 06 | Semicojinete azul | 44,75MM(+0,25) | 6 | 11241284852 | $21.31 | Shop at ECS Tuning | ||||
| 06 | Semicojinete azul | 44,50MM(+0,50) | 6 | 11241284854 | $21.31 | Shop at ECS Tuning | ||||
| 07 | Semicojinete rojo | 45,00MM(0) | 6 | 11241284849 | $16.49 | Shop at ECS Tuning | ||||
| 07 | Semicojinete rojo | 44,75MM(+0,25) | 6 | 11241284851 | $13.27 | Finalizado | Shop at ECS Tuning | |||
| 07 | Semicojinete rojo | 44,50MM(+0,50) | 6 | 11241284853 | $13.27 | Finalizado | Shop at ECS Tuning | |||
Notas
- Finalizado = La pieza ya es descontinuada.
