Ciguenal piezas adicionales for BMW 1502-2002tii 2002 (1973)

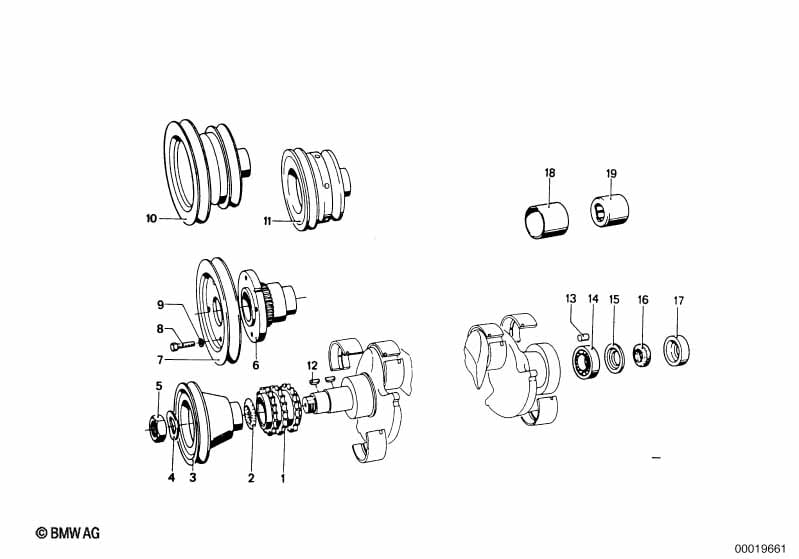

This Ciguenal piezas adicionales technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rueda de cadena | 1 | 11211260571 | $99.82 | Finalizado | Shop at ECS Tuning | ||||
| 03 | Polea | 3X RIEMENRILLEN | 1 | 02/1962 | 07/1977 | 11211270193 | $119.13 | Finalizado | Shop at ECS Tuning | |
| 04 | Arandela elastica | B20 | 1 | 07119932183 | $0.28 | Finalizado | Shop at ECS Tuning | |||
| 05 | Tuerca hexagonal | M20X1,5 | 1 | 07119921656 | $0.88 | Finalizado | Shop at ECS Tuning | |||
| 12 | Chaveta de disco | 5X7,5 | 2 | 07119951485 | $0.47 | Shop at ECS Tuning | ||||
| solo en combinacion con | ||||||||||
| -- | cojinete de agujas | 12X21 | 1 | 11211276551 | $17.36 | Shop at ECS Tuning | ||||
| 13 | Casquillo de ajuste | D=14,5MM | 1 | 11111743118 | $1.65 | Shop at ECS Tuning | ||||
| solo en combinacion con | ||||||||||
| -- | cojinete de agujas | 12X21 | 1 | 11211276551 | $17.36 | Shop at ECS Tuning | ||||
| 14 | Rodam.radial rigido | 12X32X10 | 1 | 11211709681 | $17.67 | Shop at ECS Tuning | ||||
| solo en combinacion con | ||||||||||
| 14 | Rodam.radial rigido | 1 | 11211709934 | Shop at ECS Tuning | ||||||
| solo en combinacion con | ||||||||||
| -- | cojinete de agujas | 12X21 | 1 | 11211276551 | $17.36 | Shop at ECS Tuning | ||||
| 15 | Chapa cobertora | 1 | 11211744345 | $3.92 | Shop at ECS Tuning | |||||
| solo en combinacion con | ||||||||||
| -- | cojinete de agujas | 12X21 | 1 | 11211276551 | $17.36 | Shop at ECS Tuning | ||||
| 16 | Anillo de fieltro | 1 | 11211744601 | $0.87 | Finalizado | Shop at ECS Tuning | ||||
| solo en combinacion con | ||||||||||
| -- | cojinete de agujas | 12X21 | 1 | 11211276551 | $17.36 | Shop at ECS Tuning | ||||
| 18 | Casquillo | D=32/21MM | 1 | 11211262750 | $21.81 | Shop at ECS Tuning | ||||
| solo en combinacion con | ||||||||||
| -- | cojinete de agujas | 12X21 | 1 | 11211276551 | $17.36 | Shop at ECS Tuning | ||||
| 19 | cojinete de agujas | 12X21 | 1 | 11211276551 | $17.36 | Shop at ECS Tuning | ||||
Notas
- Finalizado = La pieza ya es descontinuada.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002 Ciguenal piezas adicionales?
- This technical diagram illustrates the Ciguenal piezas adicionales within the Motor group for the 1502-2002tii 2002 produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Rueda de cadena (Part #11211260571).
- Which models use the hardware listed in this Ciguenal piezas adicionales?
- The hardware and components featured in the Ciguenal piezas adicionales are specific to the 1502-2002tii 2002 produced during 1973. These technical specifications ensure that parts like the Rueda de cadena (11211260571) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ciguenal piezas adicionales assembly?
- Each item in the Ciguenal piezas adicionales corresponds to the numbered list below the illustration. For the 1502-2002tii 2002, you can identify the Rueda de cadena by locating its position on the schematic, which then links to the official BMW part number 11211260571 for the Motor section.
