Suspen.del motor/amortiqu.silenc.d.motor for BMW 3 Series E30 318i (1991)

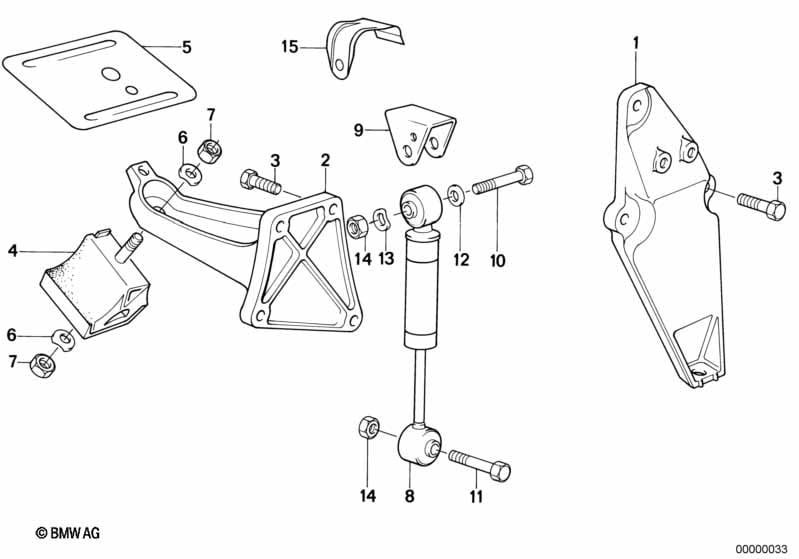

This Suspen.del motor/amortiqu.silenc.d.motor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Estribo soporte izqu. | 1 | 11811133495 | Finalizado | Shop at ECS Tuning | |||||
| 02 | Estribo soporte dcha. | 1 | 11811133494 | $29.03 | Shop at ECS Tuning | |||||
| 03 | Tornillo hexagonal con arandela | M8X26-10.9-ZNS3 | 7 | 07119904092 | Shop at ECS Tuning | |||||
| 04 | Soporte de goma | 2 | 11811129286 | $53.32 | Finalizado | Shop at ECS Tuning | ||||
| 05 | Chapa de calorifugo | 1 | 11811136047 | Finalizado | Shop at ECS Tuning | |||||
| 06 | Arandela elastica | B10-ZNS3 | 3 | 07119904463 | Shop at ECS Tuning | |||||
| 07 | Tuerca hexagonal | M10-8-ZNS | 4 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 08 | Amortiqu.-silenciador del motor | 2 | 11811127569 | $151.35 | Finalizado | Shop at ECS Tuning | ||||
| 09 | Chapa de seguridad | 1 | 11811133496 | Shop at ECS Tuning | ||||||
| 10 | Tornillo hexagonal | M8X50 | 2 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 12 | Arandela | 8,4 | 2 | 33311108204 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Arandela elastica | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Tuerca hexagonal | M8-8-ZNS3 | 3 | 02/1994 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 14 | Tuerca hexagonal | M8-8-ZNNIV SI | 3 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 15 | Chapa de calorifugo | 1 | 01/1989 | 11811136398 | Finalizado | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
