Mando de válvulas-cadena distribución for BMW 8 Series E31 850Ci (1991)

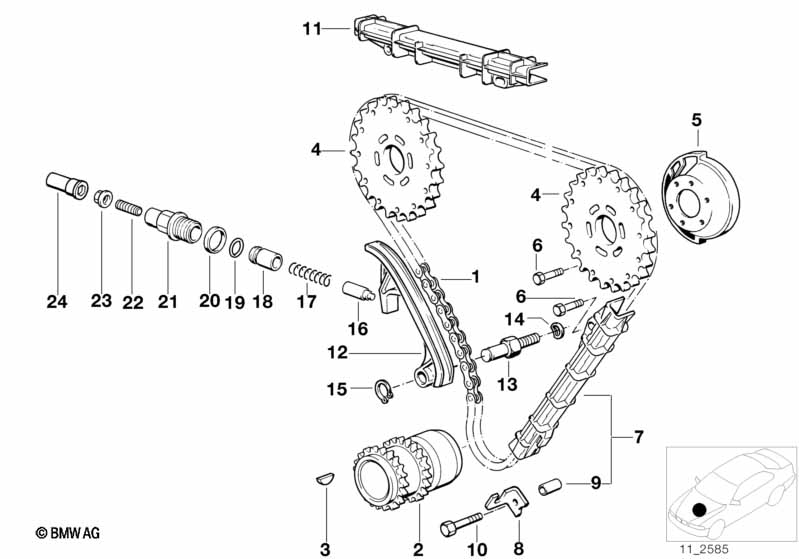

This Mando de válvulas-cadena distribución technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cadena de la distribucion | 1 | 11311710155 | $130.96 | Shop at ECS Tuning | |||||
| 02 | Rueda de cadena | 1 | 11211710237 | $135.88 | Shop at ECS Tuning | |||||
| 03 | Chaveta de disco | 5X7,5 | 2 | 07119951485 | $0.47 | Shop at ECS Tuning | ||||
| 04 | Rueda de cadena | 2 | 11311718673 | $37.14 | Shop at ECS Tuning | |||||
| 06 | Tornillo hexagonal con arandela | M6X16-U1-8.8 | X | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Via de deslizamiento | 1 | 11311745998 | $16.11 | Shop at ECS Tuning | |||||
| 08 | Angular de apoyo | 1 | 11311713884 | $2.85 | Shop at ECS Tuning | |||||
| 09 | Casquillo distanciadora | 1 | 08/1995 | 11311713843 | $1.41 | Finalizado | Shop at ECS Tuning | |||
| 09 | Casquilla distanciadora | 1 | 08/1985 | 11311745996 | $1.67 | Shop at ECS Tuning | ||||
| 10 | Tornillo hexagonal | M6X30-8.8-ZNS3 | 1 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Via de deslizamiento | 1 | 11311710134 | $15.77 | Shop at ECS Tuning | |||||
| 12 | Riel tensor | 1 | 11311725682 | $244.49 | SI 110890237 | Shop at ECS Tuning | ||||
| 13 | Bulón cojinete | 1 | 11311715656 | $15.81 | Shop at ECS Tuning | |||||
| 14 | Arandela elastica | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Arandela de seguridad | 7,0 | 1 | 07119905858 | $0.96 | Shop at ECS Tuning | ||||
| 16 | Pistón | 1 | 11311744347 | $33.04 | Shop at ECS Tuning | |||||
| 17 | Muelle de presión | 1 | 11311307053 | $5.40 | Shop at ECS Tuning | |||||
| 18 | Casquillo | 1 | 11311718364 | $5.98 | Shop at ECS Tuning | |||||
| 19 | Anillo obturador | 13,0X2,0 | 1 | 11311702953 | $1.08 | Shop at ECS Tuning | ||||
| 20 | Anillo obturador | A22X27-AL | 1 | 07119963355 | $0.36 | Shop at ECS Tuning | ||||
| 21 | Casquillo | 1 | 11311718363 | $11.07 | Shop at ECS Tuning | |||||
| 22 | Espiga roscada | M10X35 | 1 | 07119904675 | Shop at ECS Tuning | |||||
| 23 | Tuerca hexagonal | M10-8-ZNS | 1 | 07119915558 | $0.88 | Shop at ECS Tuning | ||||
| 24 | Caperuza d.proteccion | 1 | 11311720006 | $2.23 | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
- SI = Service-Information (Información Servicio)
