Volante automatico for BMW 7 Series G12 LCI 730LdX (2020)

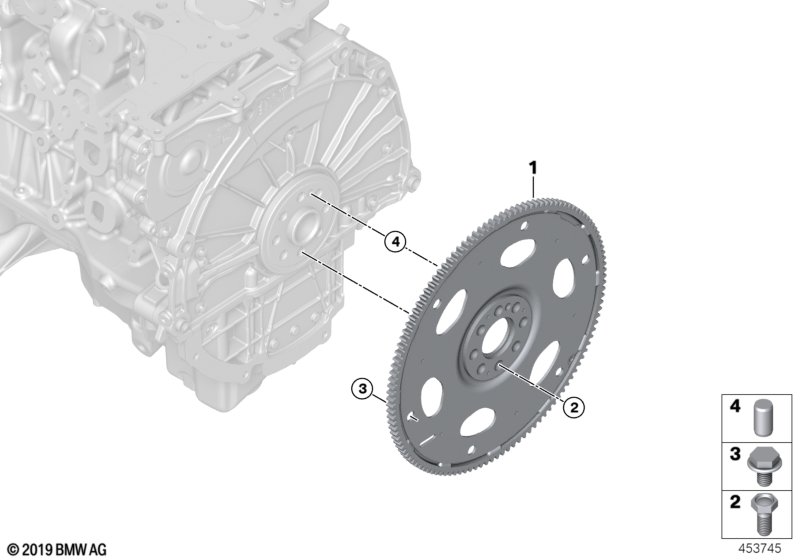

This Volante automatico technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Volante automatico | 1 | 11228612144 | Shop at ECS Tuning | ||||||
| Necesario para la reparación | ||||||||||
| -- | Tornillo hexagonal | M12X1.5X25.5 | 8 | 11227797966 | Shop at ECS Tuning | |||||
| 02 | Tornillo hexagonal | M12X1.5X25.5 | 8 | 11227797966 | Shop at ECS Tuning | |||||
| 03 | Tornillo hexagonal | M10X17,5Z1-10.9 | 6 | 24407561393 | $1.68 | Shop at ECS Tuning | ||||
| 04 | Pasador de ajuste | 8X14 | 1 | 11217797978 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series G12 LCI 730LdX Volante automatico?
- This technical diagram illustrates the Volante automatico within the Motor group for the 7 Series G12 LCI 730LdX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Volante automatico (Part #11228612144).
- Which models use the hardware listed in this Volante automatico?
- The hardware and components featured in the Volante automatico are specific to the 7 Series G12 LCI 730LdX produced during 2020. These technical specifications ensure that parts like the Volante automatico (11228612144) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Volante automatico assembly?
- Each item in the Volante automatico corresponds to the numbered list below the illustration. For the 7 Series G12 LCI 730LdX, you can identify the Volante automatico by locating its position on the schematic, which then links to the official BMW part number 11228612144 for the Motor section.
