Mazo de cables, piezas adicionales for BMW 3 Series F30 316i (2015)

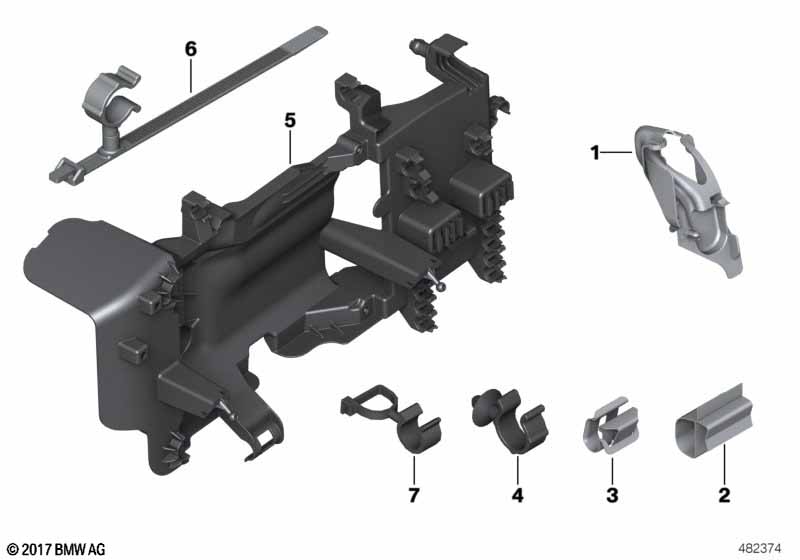

This Mazo de cables, piezas adicionales technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Soporte sensor del cigüeñal | 1 | 12527585990 | Shop at ECS Tuning | ||||||
| 02 | Sujetador de cables | 3 | 12521436023 | $0.68 | Shop at ECS Tuning | |||||
| 03 | Clip | 2 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| 04 | Soporte para tubo flexible rotatorio | 1 | 12527623364 | Shop at ECS Tuning | ||||||
| 05 | Soporte | 1 | 12527608107 | Shop at ECS Tuning | ||||||
| 06 | Portamanga | 1 | 12528570684 | Shop at ECS Tuning | ||||||
| 07 | Cinta sujetacables con soporte | 1 | 34317683767 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series F30 316i Mazo de cables, piezas adicionales?
- This technical diagram illustrates the Mazo de cables, piezas adicionales within the Parte elictrica del motor group for the 3 Series F30 316i produced during 2015. It provides a detailed exploded view of the components, identifying key parts such as the Soporte sensor del cigüeñal (Part #12527585990).
- Which models use the hardware listed in this Mazo de cables, piezas adicionales?
- The hardware and components featured in the Mazo de cables, piezas adicionales are specific to the 3 Series F30 316i produced during 2015. These technical specifications ensure that parts like the Soporte sensor del cigüeñal (12527585990) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mazo de cables, piezas adicionales assembly?
- Each item in the Mazo de cables, piezas adicionales corresponds to the numbered list below the illustration. For the 3 Series F30 316i, you can identify the Soporte sensor del cigüeñal by locating its position on the schematic, which then links to the official BMW part number 12527585990 for the Parte elictrica del motor section.
