Deposito aireacion valvula for BMW 5 Series E39 523i (1997)

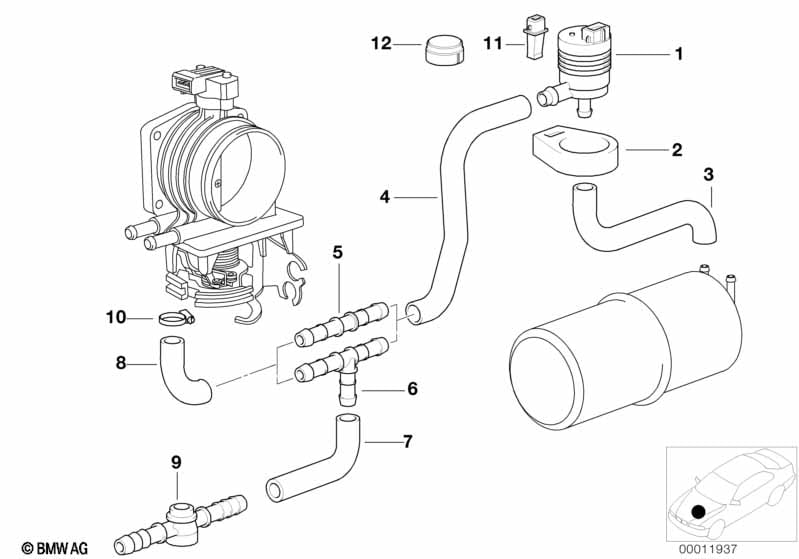

This Deposito aireacion valvula technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1997.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Deposito aireacion valvula | 1 | 09/1997 | 13901744150 | $82.88 | Shop at ECS Tuning | ||||
| 02 | Soporte valvula de ventilacion | 1 | 09/1997 | 13901740461 | $3.75 | Shop at ECS Tuning | ||||
| 03 | Codo | 1 | 09/1997 | 13901433894 | $22.15 | Shop at ECS Tuning | ||||
| 04 | Codo | 1 | 09/1997 | 13901433682 | $5.58 | Shop at ECS Tuning | ||||
| 05 | Pieza de unión | 1 | 09/1997 | 13531427072 | $1.53 | Shop at ECS Tuning | ||||
| Para vehículos con Version para Alemania |
L801A=Sí |
|||||||||
| 06 | Pieza de distribucion | 1 | 09/1997 | 13531427071 | $2.00 | Shop at ECS Tuning | ||||
| 07 | Tubo flexible de combustible | 1 | 09/1997 | 11641433810 | $3.53 | Shop at ECS Tuning | ||||
| 08 | Codo | 1 | 09/1997 | 13901433636 | $16.70 | Finalizado | Shop at ECS Tuning | |||
| Para vehículos con Version para Alemania |
L801A=Sí |
|||||||||
| 09 | Valvula de aire perturbadora | D=2,3MM | 1 | 09/1997 | 11641247677 | Shop at ECS Tuning | ||||
| 10 | Abrazadera tubo flexible | 12,8-15,3 | 1 | 09/1997 | 16121180240 | $0.77 | Shop at ECS Tuning | |||
| Para vehículos con sin catalizador |
S199A=Sí |
|||||||||
| 11 | Resistencia | 1000OHM/BOSCH | 1 | 09/1997 | 13901734469 | $6.33 | Shop at ECS Tuning | |||
Notas
- Finalizado = La pieza ya es descontinuada.
