Deposito aireacion valvula for BMW 5 Series E60 525i (2005)

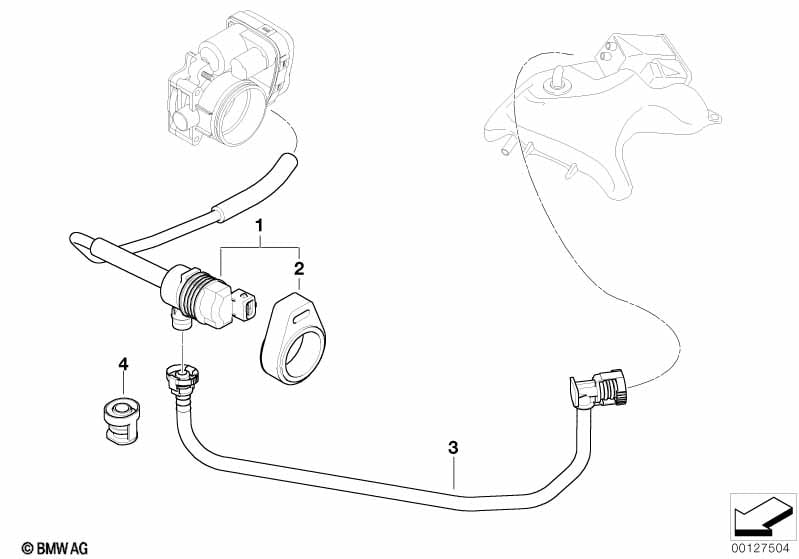

This Deposito aireacion valvula technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Válvula vent. depós. comb. con tubería | 1 | 13907557923 | $82.88 | Shop at ECS Tuning | |||||
| 02 | Soporte valvula de ventilacion | 1 | 13901433601 | $3.75 | Shop at ECS Tuning | |||||
| 03 | Conducto de ventilación del depósito | 1 | 13907521857 | $27.77 | Finalizado | Shop at ECS Tuning | ||||
| Para vehículos con Equipamiento para combustible con plomo |
S199A=Sí |
|||||||||
| 04 | Tapón ciego | 1 | 13901716254 | $2.90 | Shop at ECS Tuning | |||||
Notas
- Finalizado = La pieza ya es descontinuada.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E60 525i Deposito aireacion valvula?
- This technical diagram illustrates the Deposito aireacion valvula within the Preparacion del combustible group for the 5 Series E60 525i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Válvula vent. depós. comb. con tubería (Part #13907557923).
- Which models use the hardware listed in this Deposito aireacion valvula?
- The hardware and components featured in the Deposito aireacion valvula are specific to the 5 Series E60 525i produced during 2005. These technical specifications ensure that parts like the Válvula vent. depós. comb. con tubería (13907557923) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Deposito aireacion valvula assembly?
- Each item in the Deposito aireacion valvula corresponds to the numbered list below the illustration. For the 5 Series E60 525i, you can identify the Válvula vent. depós. comb. con tubería by locating its position on the schematic, which then links to the official BMW part number 13907557923 for the Preparacion del combustible section.
