Filtro de combustible c.caleffacion for BMW 5 Series F10 LCI 530d (2013)

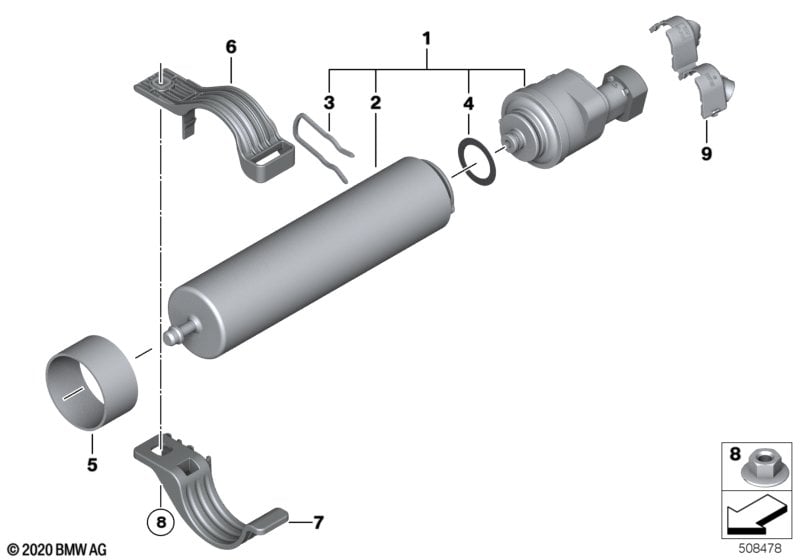

This Filtro de combustible c.caleffacion technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Filtro de combustible c.caleffacion | 1 | 06/2021 | 13328572515 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Filtro de combustible | 1 | 13327822498 | Shop at ECS Tuning | ||||||
| 02 | Cartucho filtro de combust. | 1 | 13327822499 | Shop at ECS Tuning | ||||||
| 03 | Estribo de sujeción | 1 | 13327789220 | Shop at ECS Tuning | ||||||
| 04 | Junta | 1 | 13328511657 | Shop at ECS Tuning | ||||||
| 05 | Anillo amortiguad. | 1 | 13328585293 | Shop at ECS Tuning | ||||||
| 06 | Soporte filtre de combustible | 1 | 16127231598 | Shop at ECS Tuning | ||||||
| 07 | Soporte filtre de combustible | 1 | 16127231600 | Shop at ECS Tuning | ||||||
| 08 | Tuerca hexagonal | BM6-8-ZNNIV SI | 1 | 07129905411 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Protección salpicaduras filtro combust. | 1 | 61138715927 | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series F10 LCI 530d Filtro de combustible c.caleffacion?
- This technical diagram illustrates the Filtro de combustible c.caleffacion within the Preparacion del combustible group for the 5 Series F10 LCI 530d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Filtro de combustible c.caleffacion (Part #13328572515).
- Which models use the hardware listed in this Filtro de combustible c.caleffacion?
- The hardware and components featured in the Filtro de combustible c.caleffacion are specific to the 5 Series F10 LCI 530d produced during 2013. These technical specifications ensure that parts like the Filtro de combustible c.caleffacion (13328572515) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Filtro de combustible c.caleffacion assembly?
- Each item in the Filtro de combustible c.caleffacion corresponds to the numbered list below the illustration. For the 5 Series F10 LCI 530d, you can identify the Filtro de combustible c.caleffacion by locating its position on the schematic, which then links to the official BMW part number 13328572515 for the Preparacion del combustible section.
