Sensores filt. part.diesel/pzas.montaje for BMW 5 Series F10 LCI 530d (2013)

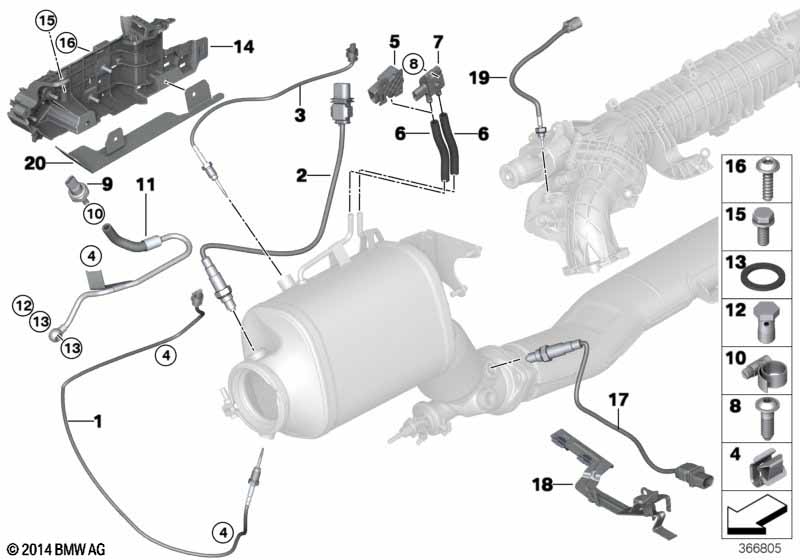

This Sensores filt. part.diesel/pzas.montaje technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con Norma de gases de escape EU3 |
S169A=No |
|||||||||
| 01 | Palpador de temperatura, gas de escape | 1 | 13628514730 | Shop at ECS Tuning | ||||||
| 02 | Sonda lambda | L=530MM | 1 | 13627793825 | Shop at ECS Tuning | |||||
| 03 | Palpador de temperatura, gas de escape | 1 | 13627805606 | $96.25 | Shop at ECS Tuning | |||||
| 04 | Clip | 3 | 12521437136 | $0.63 | Shop at ECS Tuning | |||||
| Para vehículos con Norma de emisiones gases de escape EU5 y Norma de gases de escape EU3 |
S161A=Sí S169A=No |
|||||||||
| 05 | Sensor presión gases de escape | 1 | 13627805152 | Shop at ECS Tuning | ||||||
| Para vehículos con Norma de emisiones gases de escape EU5 y Norma de gases de escape EU3 |
S161A=No S169A=No |
|||||||||
| 06 | Tubo flexible | 7.3X2 | X | 13628591459 | Shop at ECS Tuning | |||||
| Para vehículos con Norma de emisiones gases de escape EU5 y Norma de gases de escape EU3 |
S161A=Sí S169A=No |
|||||||||
| 06 | Tubo flexible | 7.3X2 | X | 13628591459 | Shop at ECS Tuning | |||||
| Para vehículos con Norma de emisiones gases de escape EU5 y Norma de gases de escape EU3 |
S161A=No S169A=No |
|||||||||
| 07 | Sensor presión diferencial | 1 | 13627805758 | $75.27 | Shop at ECS Tuning | |||||
| 08 | Torx-tornillo para materia sintetica | TS5X20 | 1 | 07119907480 | Shop at ECS Tuning | |||||
| 09 | Sensor presión gases de escape | 1 | 13628507634 | Shop at ECS Tuning | ||||||
| 10 | Abrazadera tubo flexible | L12-15 | 1 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 11 | Tubería de presión de gases de escape | 1 | 13627812807 | Shop at ECS Tuning | ||||||
| 12 | Tornillo hueco | M12X1,5 | 1 | 13627811933 | $6.15 | Shop at ECS Tuning | ||||
| 13 | Anillo obturador | A12X15,5 | 2 | 13627811934 | $0.52 | Shop at ECS Tuning | ||||
| 14 | Soporte c.sensorio | 1 | 13628574748 | Shop at ECS Tuning | ||||||
| 15 | Tornillo hexagonal con arandela | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 16 | Tornillo termoplásticos | 60X22 | 2 | 13627805193 | $0.53 | Shop at ECS Tuning | ||||
| Para vehículos con Norma de emisiones gases de escape EU5 y Norma de gases de escape EU3 |
S161A=No S169A=No |
|||||||||
| 17 | Sonda lambda | L=470MM | 1 | 13627791592 | Shop at ECS Tuning | |||||
| 18 | Soporte sonda de lambda | 1 | 13628570115 | Shop at ECS Tuning | ||||||
| 19 | Sensor de temperatura de la recirculaci | L=246MM | 1 | 13628508014 | Shop at ECS Tuning | |||||
