Deposito de combustible/chapa calorifugo for BMW 5 Series E12 530i

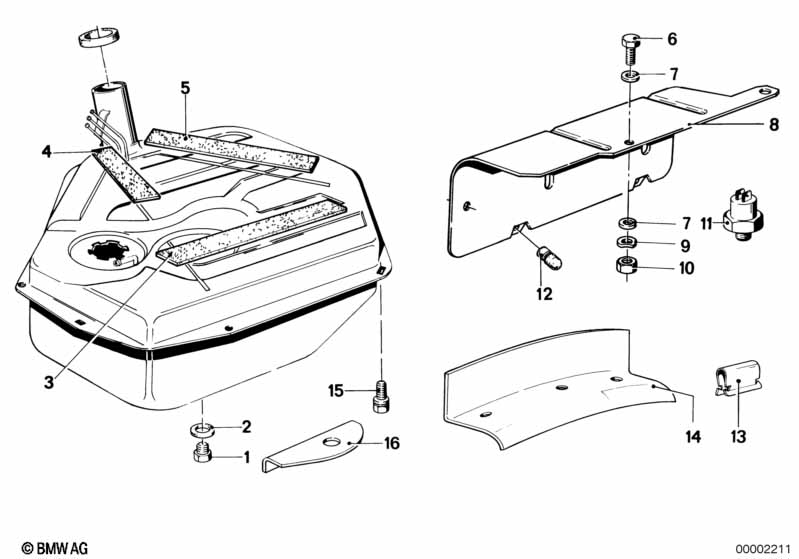

This Deposito de combustible/chapa calorifugo technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tornillo de cierre | M10X1-ST-ZNS3 | 1 | 07119904393 | $1.89 | Shop at ECS Tuning | ||||
| 02 | Anillo obturador | A10X13,5-CU | 1 | 07119963072 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Apoyo | 220MM | 1 | 16111108667 | $3.59 | Shop at ECS Tuning | ||||
| 05 | Apoyo | 220MM | 1 | 16111108667 | $3.59 | Shop at ECS Tuning | ||||
| 06 | Tornillo hexagonal | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Arandela | 7X29X2 | 1 | 51436440260 | $0.39 | Shop at ECS Tuning | ||||
| 08 | Chapa protectora | 1 | 16111118654 | $11.82 | Finalizado | Shop at ECS Tuning | ||||
| 09 | Arandela elástica negra | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Tuerca hexagonal | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Interruptor termico | 130CEL | 1 | 61311362140 | Finalizado | Shop at ECS Tuning | ||||
| 12 | Tapon | 2 | 32212675171 | $1.41 | Finalizado | Shop at ECS Tuning | ||||
| 13 | Grapa | 3 | 16111117201 | $0.30 | Shop at ECS Tuning | |||||
| 14 | Chapa protectora | 1 | 16111118105 | $2.82 | Finalizado | Shop at ECS Tuning | ||||
| 15 | Tornillo hexagonal con arandela | M10X30-Z2 | 3 | 07119913941 | $1.10 | Shop at ECS Tuning | ||||
| 16 | Refuerzo | 1 | 16111121378 | $1.45 | Finalizado | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
