Sistema de refrigeracion-tubo flex agua for BMW MINI R56 One (2008)

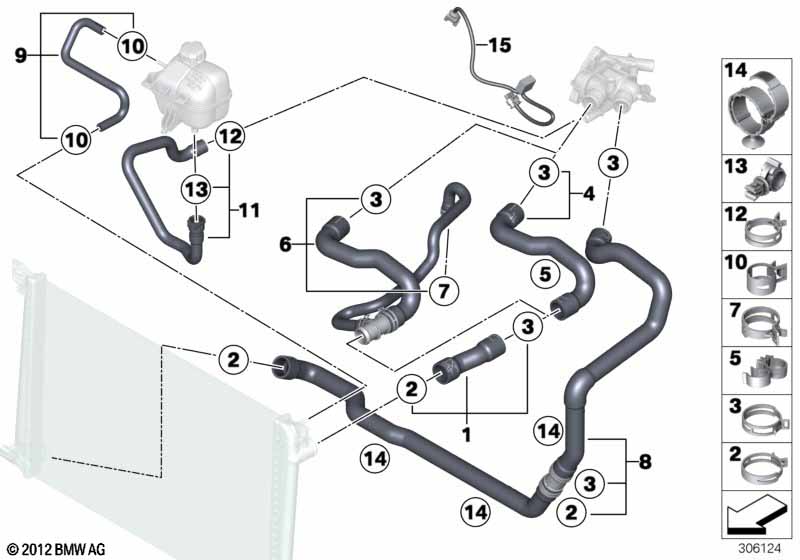

This Sistema de refrigeracion-tubo flex agua technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tubo refrigerante | 1 | 17122754203 | $26.88 | Shop at ECS Tuning | |||||
| 02 | Abrazadera | D=42MM | 2 | 17122754491 | $2.07 | Shop at ECS Tuning | ||||
| 03 | Abrazadera | D=40MM | 3 | 17122754490 | $2.25 | Shop at ECS Tuning | ||||
| 04 | Tubo refrigerante | 1 | 17122754221 | $26.88 | Shop at ECS Tuning | |||||
| 05 | Clip dobl | 1 | 17122757529 | $1.02 | Shop at ECS Tuning | |||||
| Para vehículos con Cambio automático |
S205A=Sí |
|||||||||
| 06 | Tubo refrigerante | 1 | 17122754222 | $43.15 | +core | Shop at ECS Tuning | ||||
| 07 | Abrazadera tubo flexible | D=23MM | 1 | 64216931740 | $1.75 | Shop at ECS Tuning | ||||
| 08 | Tubo refrigerante | 1 | 17122754247 | $53.95 | +core | Shop at ECS Tuning | ||||
| 09 | Tubo refrigerante | 1 | 17122754219 | $21.58 | Shop at ECS Tuning | |||||
| solo en combinacion con | ||||||||||
| -- | Grapa | 1 | 17122756252 | $1.92 | Shop at ECS Tuning | |||||
| 10 | Abrazadera | 2 | 17122754485 | $1.58 | Shop at ECS Tuning | |||||
| 11 | Tubo refrigerante | 1 | 17122754573 | $26.88 | +core | Shop at ECS Tuning | ||||
| 12 | Abrazadera de resorte | D=25MM | 1 | 64213405930 | Shop at ECS Tuning | |||||
| 13 | Clip | 1 | 17122756246 | $2.98 | Shop at ECS Tuning | |||||
| 14 | Abrazadera | 3 | 11722756407 | $1.03 | Shop at ECS Tuning | |||||
Notas
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
