Piezas de cambio automatico for BMW 5 Series E12 530i

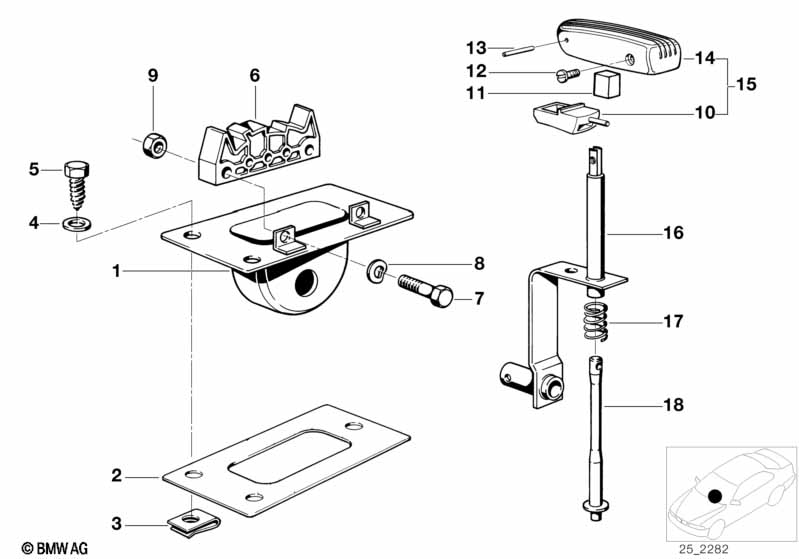

This Piezas de cambio automatico technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Soporte | 1 | 07/1975 | 25161205394 | $15.50 | Finalizado | Shop at ECS Tuning | |||
| 02 | Revest.d.amortiguador | 1 | 07/1975 | 25161204778 | $0.89 | Finalizado | Shop at ECS Tuning | |||
| 03 | Tuerca d.retencion | ST8-1 | 3 | 07/1975 | 07129926117 | $0.24 | Finalizado | Shop at ECS Tuning | ||
| 04 | Arandela | 8,4X16X1,6-ZNNV | 3 | 07/1975 | 07119907030 | Shop at ECS Tuning | ||||
| 05 | Tornillo hexagonal para chapa | ST8X22-C | 3 | 07/1975 | 07119916879 | $0.77 | Shop at ECS Tuning | |||
| 06 | Colisa de conexiones | 1 | 07/1975 | 25161204770 | $8.32 | Finalizado | Shop at ECS Tuning | |||
| 07 | Tornillo hexagonal | M6X16-8.8-ZNS3 | 2 | 07/1975 | 07119904357 | $0.36 | Shop at ECS Tuning | |||
| 08 | Arandela elástica negra | B6-ZN | 2 | 07/1975 | 07/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | ||
| 09 | Tuerca hexagonal | M6-8-ZNNIV SI | 2 | 07/1975 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 10 | Tecla | 1 | 07/1975 | 25161205883 | $4.35 | Finalizado | Shop at ECS Tuning | |||
| 11 | Amortiguador | 1 | 07/1975 | 04/1977 | 25161206140 | Finalizado | Shop at ECS Tuning | |||
| 11 | Elemento de muelle | 1 | 07/1975 | 04/1977 | 25161206316 | $7.38 | Shop at ECS Tuning | |||
| 11 | Elemento de muelle | 1 | 04/1977 | 25161206316 | $7.38 | Shop at ECS Tuning | ||||
| 12 | Tornillo | 1 | 05/1976 | 25161207835 | Finalizado | Shop at ECS Tuning | ||||
| 12 | Tornillo cilindrico | M4X8 | 1 | 05/1976 | 25161215780 | $0.55 | Shop at ECS Tuning | |||
| 13 | Pasador cilindrico | 3X28 | 1 | 07/1975 | 07119942160 | $0.15 | Finalizado | Shop at ECS Tuning | ||
| 14 | Empunadura de palanca selectora | 1 | 07/1975 | 05/1976 | 25161205881 | $49.70 | Finalizado | Shop at ECS Tuning | ||
| 14 | Empunadura de palanca selectora | 1 | 05/1976 | 25161206279 | $19.99 | Shop at ECS Tuning | ||||
| 15 | Empunadura de palanca selectora | 1 | 05/1976 | 25161215200 | $51.62 | Finalizado | Shop at ECS Tuning | |||
| 16 | Palanca de mando-parte sup. | 1 | 07/1975 | 05/1976 | 25161204758 | $26.78 | Finalizado | Shop at ECS Tuning | ||
| 16 | Palanca de mando-parte sup. | 1 | 05/1976 | 25161206277 | $61.92 | Shop at ECS Tuning | ||||
| 16 | Palanca de mando-parte sup. | 1 | 05/1976 | 25161209924 | $46.87 | Finalizado | Shop at ECS Tuning | |||
| 17 | Muelle de presión | 1 | 07/1975 | 04/1977 | 25161204767 | $0.09 | Finalizado | Shop at ECS Tuning | ||
| 18 | Tirante | 1 | 07/1975 | 25161204764 | $27.43 | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
