Arbol transm.,disco artic./soporte centr for BMW 2500-3.3Li 2500

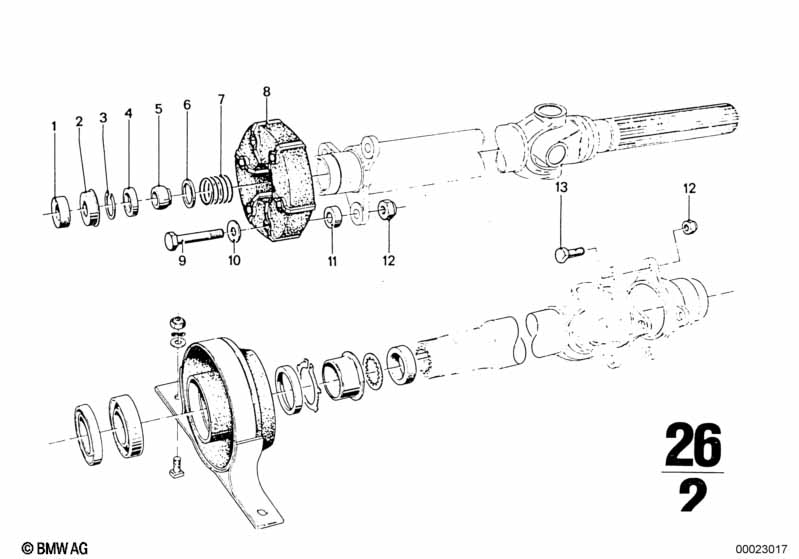

This Arbol transm.,disco artic./soporte centr technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | tope | 1 | 08/1968 | 07/1976 | 26111100891 | $7.81 | Shop at ECS Tuning | |||
| 02 | Caperuza | 1 | 08/1968 | 07/1976 | 26113648115 | Finalizado | Shop at ECS Tuning | |||
| 03 | Anillo de seguridad | 28X1,2 DIN472 | 1 | 08/1968 | 07/1976 | 33307745110 | $0.51 | Shop at ECS Tuning | ||
| 04 | Asiento esferico | 1 | 08/1968 | 07/1976 | 26111100391 | $6.85 | Finalizado | Shop at ECS Tuning | ||
| 05 | Casquillo d.guia | 1 | 08/1968 | 07/1976 | 26111100389 | $6.27 | Finalizado | Shop at ECS Tuning | ||
| 06 | Arandela | 17 | 1 | 08/1968 | 07/1976 | 07119931687 | $0.13 | Shop at ECS Tuning | ||
| 07 | Muelle de presión | 1 | 08/1968 | 07/1976 | 26113648104 | $6.95 | Finalizado | Shop at ECS Tuning | ||
| 08 | Disco articulado | D=96MM/10 | 1 | 08/1968 | 02/1977 | 26111109714 | $70.93 | Finalizado | Shop at ECS Tuning | |
| 08 | Anillo distanciador | 7,5MM | 1 | 08/1968 | 02/1977 | 26111109907 | $10.79 | Finalizado | Shop at ECS Tuning | |
| 08 | Disco articulado | D=96MM/12 | 1 | 02/1969 | 02/1977 | 26111107832 | $107.93 | Shop at ECS Tuning | ||
| 09 | Tornillo hexagonal | M12X1,5X65 | 6 | 07119914649 | Finalizado | Shop at ECS Tuning | ||||
| 09 | Tornillo hexagonal | M10X70 | 6 | 08/1968 | 02/1977 | 26111108506 | $5.76 | Finalizado | Shop at ECS Tuning | |
| 09 | Tornillo hexagonal | M12X70 | 6 | 05/1971 | 02/1977 | 26111107834 | $2.11 | Shop at ECS Tuning | ||
| 10 | Arandela | 3 | 08/1968 | 02/1977 | 26111108196 | $1.86 | Finalizado | Shop at ECS Tuning | ||
| 12 | Tuerca hexagonal | 10 | 26111204183 | $0.30 | Finalizado | Shop at ECS Tuning | ||||
| 13 | Tornillo cilindrico | M10X25 | 4 | 26111101015 | $0.91 | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
