Sop.eje del.trac.total prot.antiempotra. for BMW 5 Series G30 LCI 520dX (2022)

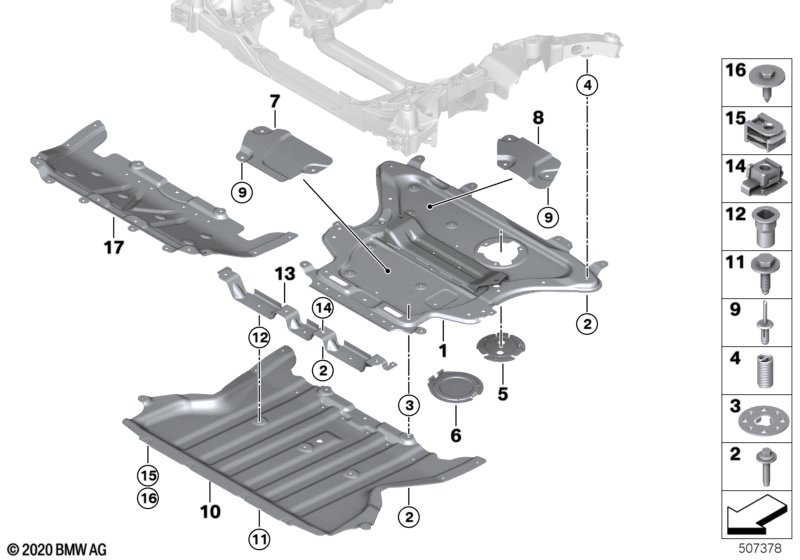

This Sop.eje del.trac.total prot.antiempotra. technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Panel refuerzo con tirante transversal | 1 | 31106887547 | Shop at ECS Tuning | ||||||
| Para vehículos con Barra prot. trasera variante nacional |
S8SDA=No |
|||||||||
| 02 | Tornillo hexagonal con arandela | M8X40 | 14 | 31106870648 | Shop at ECS Tuning | |||||
| Para vehículos con Barra prot. trasera variante nacional |
S8SDA=Sí |
|||||||||
| 02 | Tornillo hexagonal con arandela | M8X40 | 18 | 31106870648 | Shop at ECS Tuning | |||||
| 03 | Clip de enclave | 2 | 07146887093 | Shop at ECS Tuning | ||||||
| 04 | Inserto para rosca bobina Heli-Coil | M8X20-A2 | 12 | 31106868376 | Shop at ECS Tuning | |||||
| 05 | Tapa de panel de refuerzo | AWD | 1 | 31116865263 | Shop at ECS Tuning | |||||
| 07 | Insonorización panel refuerzo delantero | 1 | 31116869318 | Shop at ECS Tuning | ||||||
| 08 | Insonorización panel refuerzo trasero | 1 | 31116869319 | Shop at ECS Tuning | ||||||
| 09 | Remache de macho | 6 | 07147234212 | Shop at ECS Tuning | ||||||
| Para vehículos con Barra prot. trasera variante nacional |
S8SDA=Sí |
|||||||||
| 10 | Proteccion inferior, delantero | 1 | 31146883283 | Shop at ECS Tuning | ||||||
| 11 | Tornillo hexagonal | M6X20-8.8 | 3 | 07119907898 | Shop at ECS Tuning | |||||
| 12 | Remache tuerca de cabeza plana | M6 | 3 | 07147311614 | Shop at ECS Tuning | |||||
| 13 | Soporte protec.antiempotramiento delant. | 1 | 31106883284 | Shop at ECS Tuning | ||||||
| 14 | Tuerca de jaula | 2 | 31106870940 | Shop at ECS Tuning | ||||||
| 15 | Tuerca de plástico clip C | TS5 | 4 | 07147311312 | Shop at ECS Tuning | |||||
| 16 | Tornillo hexagonal | TS5X20 SW8 D=22 | 4 | 07149213164 | $0.38 | Shop at ECS Tuning | ||||
