Pat.telesc.del.VDM/piez.ad.veh.trac.tot. for BMW 5 Series G30 LCI 520dX (2022)

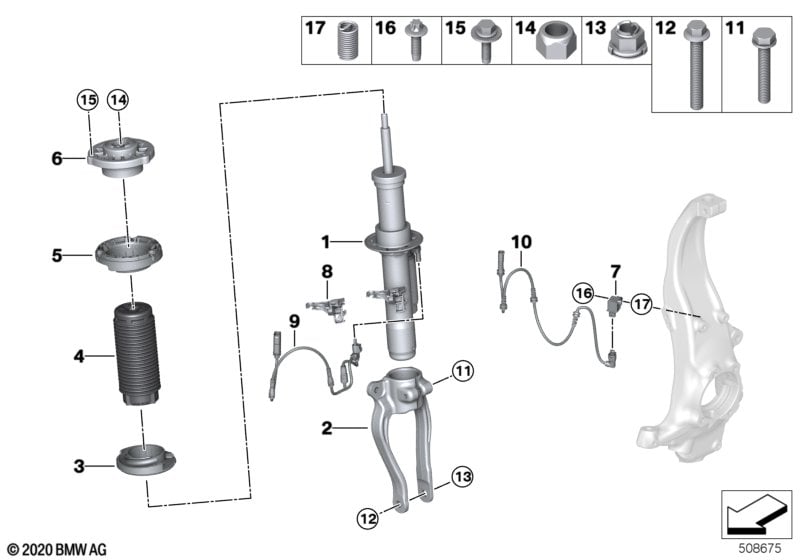

This Pat.telesc.del.VDM/piez.ad.veh.trac.tot. technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Al cambiar la pata telescópica se necesita el siguiente componente: Amortiguador adicional delantero Atención ! Prestar atención a Manual de reparación ---------- Para vehículos con Suspensión adaptativa o Dispos.chasis y suspens."Adaptive Drive" o Chasis M adaptivo o Paquete chasis confort adaptable o Tren de rodaje deportivo M Professional |
S223A=Sí S2VAA=Sí S2VFA=Sí S2VMA=Sí S2VWA=Sí |
||||||||
| 01 | Pata telescópica delantera izquierda EDC | 1 | 37106866393 | Shop at ECS Tuning | ||||||
| 01 | Pata telescópica delantero derecho EDC | 1 | 37106866394 | Shop at ECS Tuning | ||||||
| 02 | Soporte conjunto telescópico izquierda | 1 | 31126865929 | Shop at ECS Tuning | ||||||
| 02 | Soporte conjunto telescópico derecha | 1 | 31126865930 | Shop at ECS Tuning | ||||||
| 03 | Placa elastica inf. | 2 | 31306862570 | Shop at ECS Tuning | ||||||
| 04 | Amortiguador adicional delantero | 2 | 31336866790 | Shop at ECS Tuning | ||||||
| 05 | Placa elastica superior | 2 | 31306862569 | Shop at ECS Tuning | ||||||
| 06 | Soporte de empuje | 2 | 31306882571 | Shop at ECS Tuning | ||||||
| solo en combinacion con | ||||||||||
| -- | Tuerca hexagonal autofrenable | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| -- | Tornillo hexagonal con brida autorrosc. | M8X30-10.9 ZNS3 | 6 | 31306865312 | Shop at ECS Tuning | |||||
| Para vehículos con Dispos.chasis y suspens."Adaptive Drive" o Executive Drive o Tren de rodaje deportivo M Professional |
S2VAA=Sí S2VTA=Sí S2VWA=Sí |
|||||||||
| 07 | Sensor de aceleración | 2 | 37146861319 | Shop at ECS Tuning | ||||||
| 08 | Soporte izquierda | 1 | 37106882179 | Shop at ECS Tuning | ||||||
| 08 | Soporte derecho | 1 | 37106882180 | Shop at ECS Tuning | ||||||
| 09 | Cable adaptador VDC izq. | 1 | 37106869073 | Shop at ECS Tuning | ||||||
| 09 | Cable adaptador VDC der. | 1 | 37106869074 | Shop at ECS Tuning | ||||||
| Para vehículos con Dispos.chasis y suspens."Adaptive Drive" o Executive Drive o Tren de rodaje deportivo M Professional |
S2VAA=Sí S2VTA=Sí S2VWA=Sí |
|||||||||
| 10 | Cable sensor de aceleración de rueda | 2 | 37146861345 | Shop at ECS Tuning | ||||||
| 11 | Tornillo hexagonal con borde | M10X60 | 2 | 07119904161 | Shop at ECS Tuning | |||||
| 12 | Tornillo exagonal con borde | M14X1,5X95 10.9 | 2 | 07119906100 | Shop at ECS Tuning | |||||
| 13 | Tuerca combinada | M14X1,5-10ZNNIV | 2 | 33306787062 | $1.88 | Shop at ECS Tuning | ||||
| 14 | Tuerca hexagonal autofrenable | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| 15 | Tornillo hexagonal con brida autorrosc. | M8X30-10.9 ZNS3 | 6 | 31306865312 | Shop at ECS Tuning | |||||
| Para vehículos con Dispos.chasis y suspens."Adaptive Drive" o Executive Drive o Tren de rodaje deportivo M Professional |
S2VAA=Sí S2VTA=Sí S2VWA=Sí |
|||||||||
| 16 | Tornillo Torx | 2 | 11127624088 | Shop at ECS Tuning | ||||||
| 17 | Inserto para rosca bobina Heli-Coil | M6 | 2 | 07149365479 | Shop at ECS Tuning | |||||
