Soporte eje delant. 4 ruedas for BMW 4 Series G23 Convertible LCI M440iX (2023)

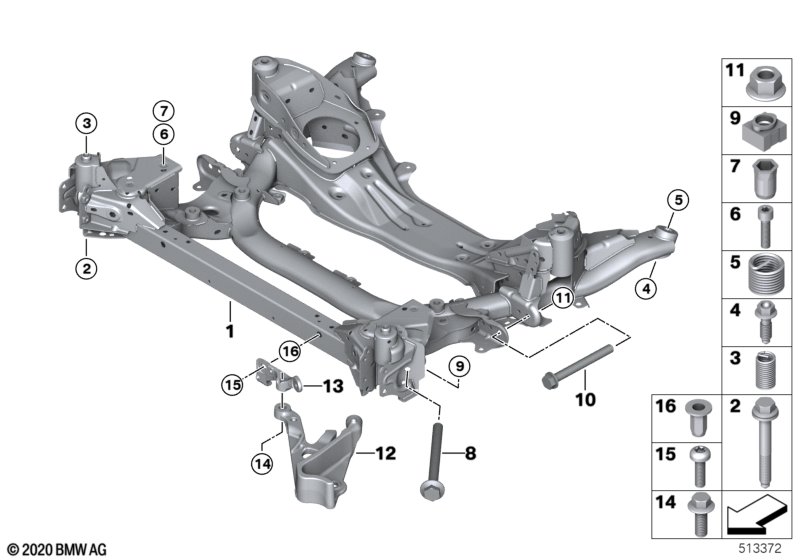

This Soporte eje delant. 4 ruedas technical drawing provides a detailed breakdown of the assembly for the 4 Series G23 Convertible LCI M440iX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Soporte eje delantero | AWD | 1 | 31108841117 | Shop at ECS Tuning | |||||
| 02 | Tornillo combinado ASA | M12X1,5X90 | 4 | 07146885922 | Shop at ECS Tuning | |||||
| 03 | Inserto para rosca bobina Heli-Coil | M12X1,5X30 | 4 | 33306780501 | Shop at ECS Tuning | |||||
| 04 | Tornillo hexagonal con arandela | M14X42X1,5 | 2 | 07146886209 | Shop at ECS Tuning | |||||
| 05 | Inserto roscado helicoidal | M14X1.5X14 | 2 | 33326869611 | Shop at ECS Tuning | |||||
| 06 | Tornillo ISA | M8X30-8.8-ZNS3 | 4 | 07129904067 | $2.43 | Shop at ECS Tuning | ||||
| 07 | Remache tuerca de cabeza plana | M8 | 4 | 07147132312 | Shop at ECS Tuning | |||||
| 08 | Tornillo hexagonal con brida | M12X136,10.9 | 2 | 31106885777 | Shop at ECS Tuning | |||||
| 09 | Tuerca cuadrada | M12X1.5-10 ZNS | 2 | 31106867397 | Shop at ECS Tuning | |||||
| 10 | Tornillo hexagonal con arandela | M12X1,5X110 | 2 | 07119906460 | Shop at ECS Tuning | |||||
| 11 | Tuerca con collar autofrenable | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 4 Series G23 Convertible LCI M440iX Soporte eje delant. 4 ruedas?
- This technical diagram illustrates the Soporte eje delant. 4 ruedas within the Eje delantero group for the 4 Series G23 Convertible LCI M440iX produced during 2023. It provides a detailed exploded view of the components, identifying key parts such as the Soporte eje delantero (Part #31108841117).
- Which models use the hardware listed in this Soporte eje delant. 4 ruedas?
- The hardware and components featured in the Soporte eje delant. 4 ruedas are specific to the 4 Series G23 Convertible LCI M440iX produced during 2023. These technical specifications ensure that parts like the Soporte eje delantero (31108841117) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Soporte eje delant. 4 ruedas assembly?
- Each item in the Soporte eje delant. 4 ruedas corresponds to the numbered list below the illustration. For the 4 Series G23 Convertible LCI M440iX, you can identify the Soporte eje delantero by locating its position on the schematic, which then links to the official BMW part number 31108841117 for the Eje delantero section.
