Servodirec.hidrau.-bomba d.aletas tandem for BMW 5 Series E34 525tds (1996)

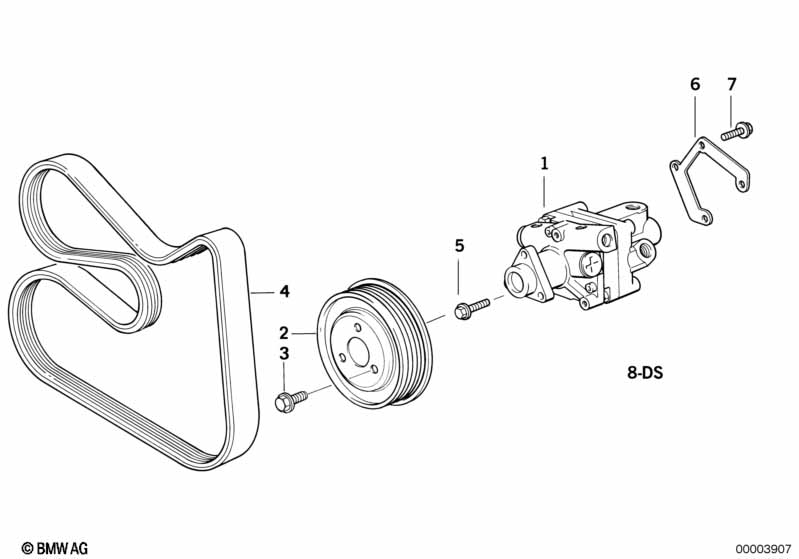

This Servodirec.hidrau.-bomba d.aletas tandem technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con Autonivelación de la suspensión |
=Sí |
|||||||||
| 01 | Bomba de aletas tandem | ZF | 1 | 32411141284 | $756.09 | Shop at ECS Tuning | ||||
| 02 | Polea | 1 | 32412243683 | Shop at ECS Tuning | ||||||
| 03 | Tornillo hexagonal con arandela | M8X12-Z3-1 | 3 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Tornillo hexagonal con arandela | M8X18-U1-8.8 | 4 | 07119905529 | $0.96 | Shop at ECS Tuning | ||||
| 06 | Chapa de soporte | 1 | 32422243603 | Shop at ECS Tuning | ||||||
| 07 | Tornillo hexagonal con arandela | M8X20-ZNS3 | 2 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 08 | Juego d.juntas bomba de aletas tandem | ZF | 1 | 32411134836 | $41.08 | Shop at ECS Tuning | ||||
