Juego reequip.,empunadura C.calefac. for BMW R45-R65LS..78-85 R45

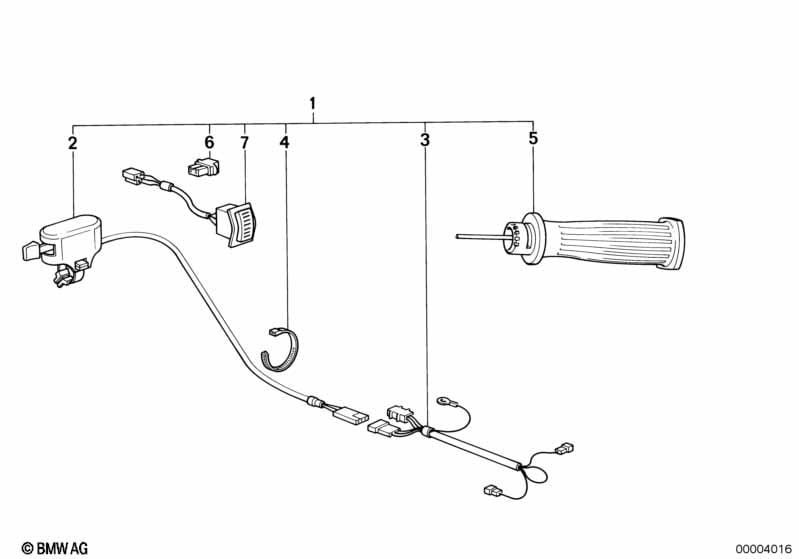

This Juego reequip.,empunadura C.calefac. technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Juego de cables manillas calentables | 1 | 08/1980 | 61121243981 | $25.00 | Finalizado, +core | Shop at ECS Tuning | |||
| 03 | Juego de cables manillas calentables | 1 | 09/1980 | 61121244329 | $26.75 | Finalizado, +core | Shop at ECS Tuning | |||
| 04 | Conector de cables | L=292MM/B=4,8MM | X | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 05 | Empuñadura con calefacción, derecha | 1 | 61311243978 | $127.14 | Finalizado, +core | Shop at ECS Tuning | ||||
| 05 | Griff eckig beheizt links | 1 | 61311243979 | $116.88 | +core | Shop at ECS Tuning | ||||
| 07 | Interruptor adicional | 1 | 61311243454 | $46.35 | Finalizado, +core | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
