Muelle-amortig.trasera,regulac.del nivel for BMW 7 Series E38 740iL (1994)

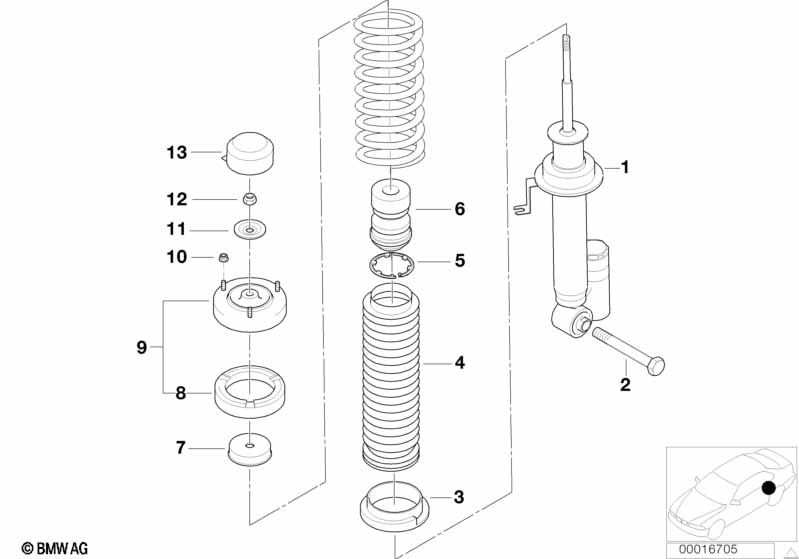

This Muelle-amortig.trasera,regulac.del nivel technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Muelle-amortiguador trasera izqu. | 1 | 37121091411 | $770.66 | Shop at ECS Tuning | |||||
| Necesario para la reparación | ||||||||||
| 01 | Muelle-amortiguador trasera dcha. | 1 | 37121091412 | $770.66 | Shop at ECS Tuning | |||||
| Necesario para la reparación | ||||||||||
| -- | Tuerca hexagonal autofrenable | M14X1,5-05 ZNS3 | 1 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| -- | Tornillo hexagonal | M14X1,5X85 | 1 | 07119901378 | $2.35 | Shop at ECS Tuning | ||||
| 02 | Tornillo hexagonal | M14X1,5X85 | 2 | 07119901378 | $2.35 | Shop at ECS Tuning | ||||
| 03 | Placa elastica inf. | 2 | 33521131523 | $7.48 | Shop at ECS Tuning | |||||
| 04 | Fuelle | 2 | 31321125878 | $12.62 | Shop at ECS Tuning | |||||
| 05 | Anillo de retención | 2 | 37121134899 | $2.97 | Shop at ECS Tuning | |||||
| 06 | Amortiguador adicional trasero | 2 | 33531091564 | $20.55 | Shop at ECS Tuning | |||||
| 07 | Cubo de apoyo | 2 | 37121090310 | $3.65 | Shop at ECS Tuning | |||||
| 08 | Placa elastica superior | 2 | 33531133048 | $9.40 | Shop at ECS Tuning | |||||
| 09 | Soporte de empuje | 2 | 37121091240 | $28.83 | Shop at ECS Tuning | |||||
| 10 | Tuerca con collar autofrenable | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 11 | Plato | 2 | 37121090307 | $4.53 | Shop at ECS Tuning | |||||
| 12 | Tuerca hexagonal autofrenable | M14X1,5-05 ZNS3 | 2 | 31106774714 | $1.12 | Shop at ECS Tuning | ||||
| 13 | Caperuza d.proteccion | 2 | 33521090281 | $3.00 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 740iL Muelle-amortig.trasera,regulac.del nivel?
- This technical diagram illustrates the Muelle-amortig.trasera,regulac.del nivel within the Eje trasero group for the 7 Series E38 740iL produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Muelle-amortiguador trasera izqu. (Part #37121091411).
- Which models use the hardware listed in this Muelle-amortig.trasera,regulac.del nivel?
- The hardware and components featured in the Muelle-amortig.trasera,regulac.del nivel are specific to the 7 Series E38 740iL produced during 1994. These technical specifications ensure that parts like the Muelle-amortiguador trasera izqu. (37121091411) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Muelle-amortig.trasera,regulac.del nivel assembly?
- Each item in the Muelle-amortig.trasera,regulac.del nivel corresponds to the numbered list below the illustration. For the 7 Series E38 740iL, you can identify the Muelle-amortiguador trasera izqu. by locating its position on the schematic, which then links to the official BMW part number 37121091411 for the Eje trasero section.
