Diferencial trasero piezas sueltas for BMW 2500-3.3Li 3.0S

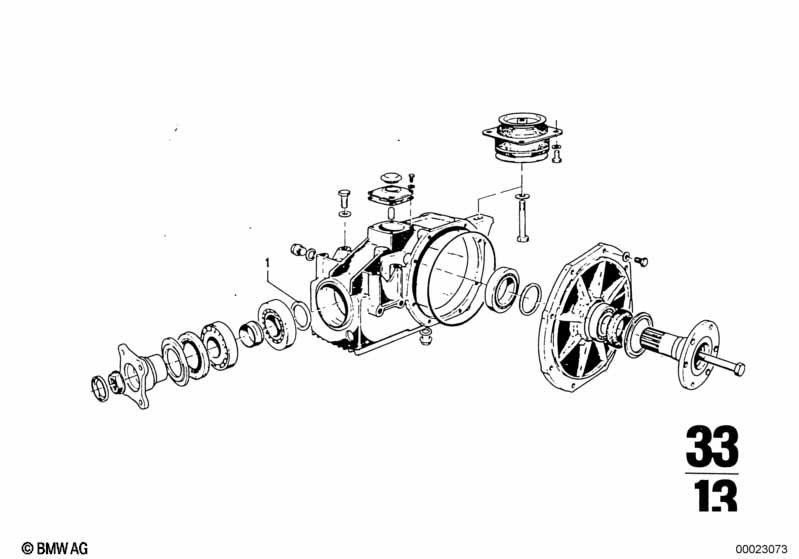

This Diferencial trasero piezas sueltas technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Arandela distanciadora | 3,10 | X | 33121200510 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,15 | X | 33121200511 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,20 | X | 33121200512 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,25 | X | 33121200513 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,30 | X | 33121200514 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,35 | X | 33121200515 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,400MM | X | 33121200516 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,450MM | X | 33121200517 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,500MM | X | 33121200518 | $5.47 | Finalizado | Shop at ECS Tuning | |||
| 01 | Arandela distanciadora | 3,530MM | X | 33121200519 | $5.47 | Finalizado | Shop at ECS Tuning | |||
| 01 | Arandela distanciadora | 3,560MM | X | 33121200520 | $5.47 | Finalizado | Shop at ECS Tuning | |||
| 01 | Arandela distanciadora | 3,590MM | X | 33121200521 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,62 | X | 33121200522 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,65 | X | 33121200523 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,68 | X | 33121200524 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,71 | X | 33121200525 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,74 | X | 33121200526 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,77 | X | 33121200527 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,80 | X | 33121200528 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,83 | X | 33121200529 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,86 | X | 33121200530 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,89 | X | 33121200531 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,92 | X | 33121200532 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,95 | X | 33121200533 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 3,98 | X | 33121200534 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 4,01 | X | 33121200535 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 4,04 | X | 33121200536 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 4,07 | X | 33121200537 | Finalizado | Shop at ECS Tuning | ||||
| 01 | Arandela distanciadora | 4,10 | X | 33121200538 | Finalizado | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
