Muelle-amortig.trasera,regulac.del nivel for BMW 2500-3.3Li 3.0S

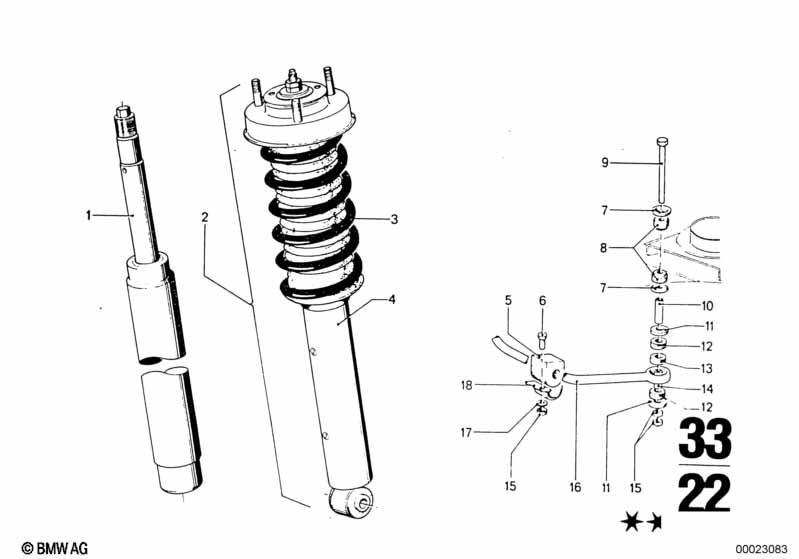

This Muelle-amortig.trasera,regulac.del nivel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Para vehículos con Autonivelación de la suspensión |
=Sí |
|||||||||
| 03 | Muelle helicoidal | WEISS / NIVOMAT | 2 | 33531112192 | $146.20 | Finalizado | Shop at ECS Tuning | |||
| 04 | Amortiguador trasero | 2 | 33521108685 | Finalizado | Shop at ECS Tuning | |||||
| 05 | Soporte de goma p estabilizador | D=16MM | 2 | 33551103492 | $11.60 | Shop at ECS Tuning | ||||
| 06 | Tornillo hexagonal | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Plato | 4 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 08 | Anillo de goma | 4 | 33551103719 | $3.64 | Shop at ECS Tuning | |||||
| 09 | Tornillo hexagonal | M8X180 | 2 | 07119912597 | $5.38 | Finalizado | Shop at ECS Tuning | |||
| 10 | Casquillo distanciad. | 2 | 31352654108 | $4.68 | Finalizado | Shop at ECS Tuning | ||||
| 11 | Arandela | 4 | 33551103720 | $0.97 | Finalizado | Shop at ECS Tuning | ||||
| 12 | tope | 4 | 33551103718 | $5.14 | Shop at ECS Tuning | |||||
| 13 | Tubo flexible | 2 | 33531104057 | $4.18 | Shop at ECS Tuning | |||||
| 14 | Tubo distanciador | 2 | 33551103721 | $2.70 | Shop at ECS Tuning | |||||
| 15 | Tuerca hexagonal | M8-8-ZNS3 | 8 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 15 | Tuerca hexagonal | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 16 | Estabilizador trasero | D=16MM | 1 | 33551123944 | $96.57 | Shop at ECS Tuning | ||||
| 17 | Arandela | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 18 | Soporte estabilizador | 2 | 31352654112 | $9.36 | Shop at ECS Tuning | |||||
Notas
- Finalizado = La pieza ya es descontinuada.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Muelle-amortig.trasera,regulac.del nivel?
- This technical diagram illustrates the Muelle-amortig.trasera,regulac.del nivel within the Eje trasero group for the 2500-3.3Li 3.0S. It provides a detailed exploded view of the components, identifying key parts such as the Muelle helicoidal (Part #33531112192).
- Which models use the hardware listed in this Muelle-amortig.trasera,regulac.del nivel?
- The hardware and components featured in the Muelle-amortig.trasera,regulac.del nivel are specific to the 2500-3.3Li 3.0S. These technical specifications ensure that parts like the Muelle helicoidal (33531112192) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Muelle-amortig.trasera,regulac.del nivel assembly?
- Each item in the Muelle-amortig.trasera,regulac.del nivel corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Muelle helicoidal by locating its position on the schematic, which then links to the official BMW part number 33531112192 for the Eje trasero section.
