Suspension elastica tipo Sport for BMW 2500-3.3Li 3.0S

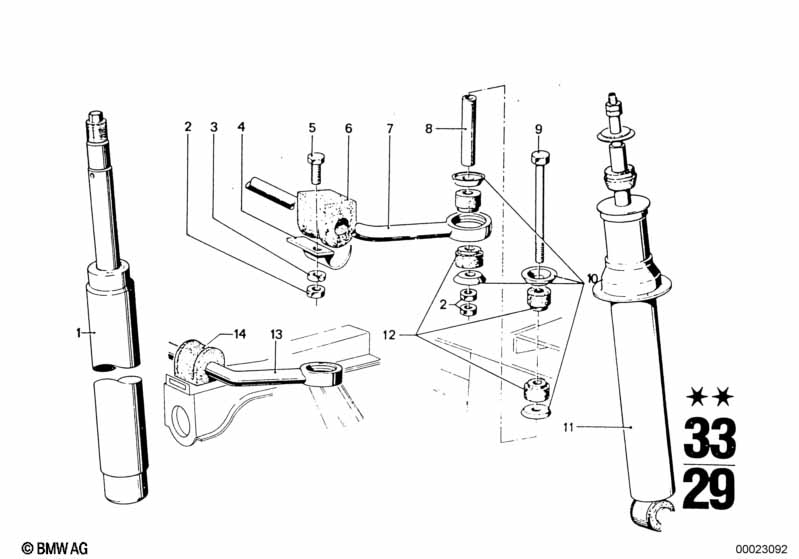

This Suspension elastica tipo Sport technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Optica amortiguador | SPORT | 2 | 31321112239 | Finalizado | Shop at ECS Tuning | ||||
| 02 | Tuerca hexagonal | M8-8-ZNS3 | 8 | 02/1977 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 02 | Tuerca hexagonal | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 03 | Arandela | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 04 | Soporte estabilizador | 2 | 31352654112 | $9.36 | Shop at ECS Tuning | |||||
| 05 | Tornillo hexagonal | M8X16-10.9-PHR | 4 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Soporte de goma p estabilizador | D=16MM | 2 | 33551103492 | $11.60 | Shop at ECS Tuning | ||||
| 07 | Estabilizador trasero | D=16MM | 1 | 33551123944 | $96.57 | Shop at ECS Tuning | ||||
| 08 | Casquillo distanciad. | 2 | 31352654108 | $4.68 | Finalizado | Shop at ECS Tuning | ||||
| 09 | Tornillo hexagonal | M8X160 | 2 | 07119912595 | $3.47 | Shop at ECS Tuning | ||||
| 10 | Plato | 8 | 31351114570 | $3.59 | Shop at ECS Tuning | |||||
| 11 | Amortiguador trasero | SPORT | 2 | 33521110380 | Finalizado | Shop at ECS Tuning | ||||
| 12 | Anillo de goma | 9 | 31351125712 | $1.37 | Shop at ECS Tuning | |||||
| 13 | Estabilizador | D=20MM | 1 | 31351106847 | $96.26 | Finalizado | Shop at ECS Tuning | |||
| 14 | Soporte de goma | D=20MM | 2 | 31351106862 | $18.38 | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
