Freno de la rueda delantera for BMW R45-R65LS..78-85 R65LS

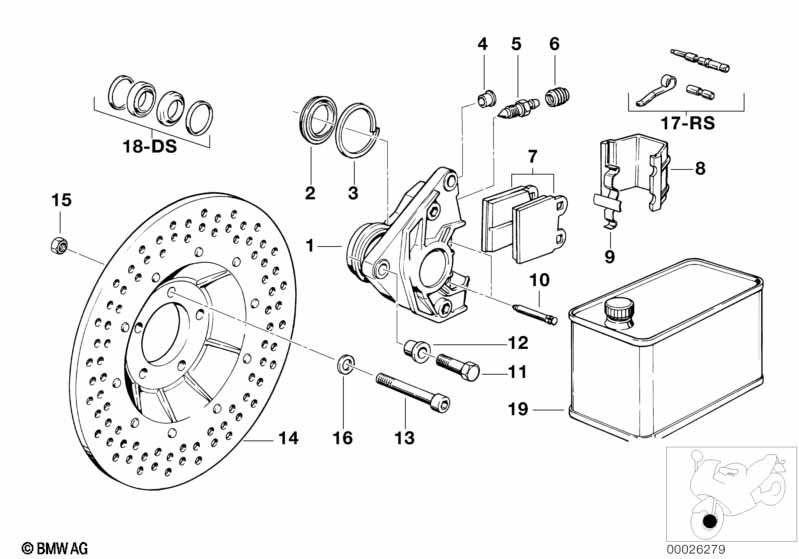

This Freno de la rueda delantera technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Silla de freno izquierda | ATE | 1 | 34111237257 | Finalizado, +core | Shop at ECS Tuning | ||||
| 01 | Silla de freno derecho | ATE | 1 | 34111237258 | $487.37 | Finalizado, +core | Shop at ECS Tuning | |||
| 01 | Silla de freno izquierda | BREMBO | 1 | 34111238069 | $454.80 | Finalizado, +core | Shop at ECS Tuning | |||
| 01 | Silla de freno derecho | BREMBO | 1 | 34111238070 | $454.80 | Finalizado, +core | Shop at ECS Tuning | |||
| 02 | Manguito | ATE | 4 | 34111238061 | $9.16 | Finalizado | Shop at ECS Tuning | |||
| 03 | Anillo de apriete | ATE | 4 | 34111238062 | $1.85 | Finalizado | Shop at ECS Tuning | |||
| 04 | Tapon de cierre | 2 | 34111238060 | Finalizado | Shop at ECS Tuning | |||||
| 05 | Tornillo ventilación | M10X1 | 2 | 34111233124 | $8.82 | Shop at ECS Tuning | ||||
| 05 | Tornillo ventilación | M10X1-ZN | 2 | 34211236793 | $10.64 | Shop at ECS Tuning | ||||
| 06 | Caperuza guardapolvo | ATE | 2 | 34111233125 | $4.20 | Shop at ECS Tuning | ||||
| 06 | Caperuza guardapolvo | 2 | 34211236794 | $6.09 | Shop at ECS Tuning | |||||
| 07 | Juego rep. pastillas de freno | ATE | X | 34112301359 | $44.39 | Shop at ECS Tuning | ||||
| 07 | Juego rep. pastillas de freno | 1 | 34112301360 | $53.71 | +core | Shop at ECS Tuning | ||||
| 08 | Caperuza | ATE | 2 | 34111238067 | $6.11 | Finalizado | Shop at ECS Tuning | |||
| 08 | Caperuza | 20 3254.10 | 2 | 34211238058 | $5.50 | Finalizado | Shop at ECS Tuning | |||
| 09 | Muelle | ATE | 2 | 34111238065 | $9.47 | Shop at ECS Tuning | ||||
| 10 | Clavija | ATE | 4 | 34111238066 | $3.88 | Finalizado | Shop at ECS Tuning | |||
| 11 | Tornillo cilindrico | M10X30-8.8-ZNS | 4 | 07119901049 | $1.30 | Shop at ECS Tuning | ||||
| 12 | Casquillo | 1,2 | X | 34111238079 | $8.25 | Shop at ECS Tuning | ||||
| 12 | Casquillo | 2,35 | X | 34111238080 | $8.25 | Shop at ECS Tuning | ||||
| 12 | Casquillo | 3,5 | X | 34111238081 | $8.25 | Shop at ECS Tuning | ||||
| 12 | Casquillo | 1,7 | X | 34112301735 | $4.60 | Shop at ECS Tuning | ||||
| 12 | Casquillo | 2,9 | X | 34112301736 | $4.60 | Finalizado | Shop at ECS Tuning | |||
| 13 | Tornillo cilindrico | M8X100-8.8-CD | 5 | 07119919783 | $1.14 | Shop at ECS Tuning | ||||
| 14 | Disco de freno | 2 | 34111236566 | $435.50 | +core | Shop at ECS Tuning | ||||
| 15 | Tuerca hexagonal autofrenable | M8-8-ZNS3 | 5 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 16 | Arandela | X | 34112302077 | $0.84 | Finalizado | Shop at ECS Tuning | ||||
| 17 | Juego piezas adicionales | BREMBO | 2 | 34211238059 | $19.60 | Shop at ECS Tuning | ||||
| 18 | Juego de reparacion asiento de freno | BREMBO | X | 34111454807 | $40.36 | Shop at ECS Tuning | ||||
| 18 | Juego de reparacion asiento de freno | ATE | X | 34111454809 | $40.36 | Shop at ECS Tuning |
Notas
- Finalizado = La pieza ya es descontinuada.
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
