Rueda AL BMW diseño turbina 452-18'' for BMW 5 Series F10 LCI 520d (2013)

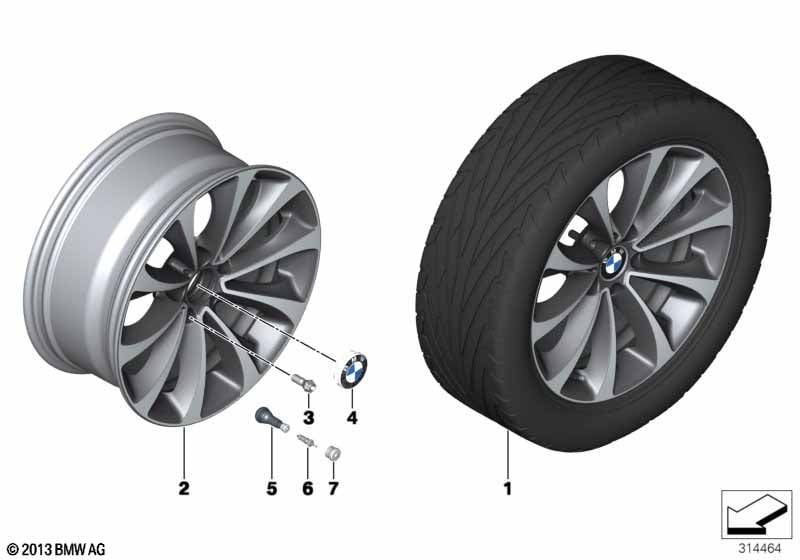

This Rueda AL BMW diseño turbina 452-18'' technical drawing provides a detailed breakdown of the assembly for the 5 Series F10 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Aviso: Solo para vehículos con homologación CE- BE. La combinación de llantas y neumáticos en ciertas ocasiones es motivo de registro. Comprobar en el CoC del vehículo si está registrada la combinación de llantas y neumáticos. Si no lo están, dependiendo del país, podría ser necesario obtener una autorización nacional posterior. Para vehículos con Llanta AL BMW diseño turbina 452 |
S2AXA=Sí |
||||||||
| 02 | Llanta aleación lig. rect. alto brillo | 8JX18 ET:30 | 4 | 36116857665 | Shop at ECS Tuning | |||||
| 03 | Tornillo para ruedas negro | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Tapacubos con borde cromado | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Válvula de goma | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| Para vehículos con Indicador de presión de los neumáticos |
S2VBA=Sí |
|||||||||
| 05 | Valvula roscada RDC | 4 | 09/2010 | 36146792829 | $13.90 | Shop at ECS Tuning | ||||
| 06 | Valvula de inflacion | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 07 | Casquetes de válvula | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| Para vehículos con Indicador de presión de los neumáticos |
S2VBA=Sí |
|||||||||
| 07 | Casquetes de válvula RDC | 4 | 09/2010 | 36111095436 | $0.35 | Shop at ECS Tuning | ||||
