BMW llanta AL 825M - 19" - 20" for BMW 3 Series G80 M3 LCI M3 (2023)

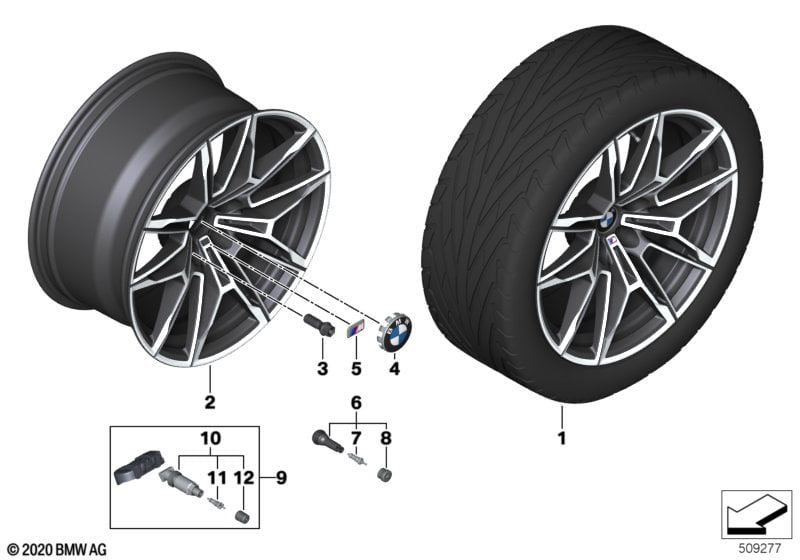

This BMW llanta AL 825M - 19" - 20" technical drawing provides a detailed breakdown of the assembly for the 3 Series G80 M3 LCI M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Atención: Debido al reglamento de baterías UE es obligatoria por ley la designación de las piezas para sensores RDC o para componentes con batería incorporada. Cuando el cliente compra este producto, hay que imprimir el documento anexo y entregárselo. Aviso: Solo para vehículos con homologación CE- BE. La combinación de llantas y neumáticos en ciertas ocasiones es motivo de registro. Comprobar en el CoC del vehículo si está registrada la combinación de llantas y neumáticos. Si no lo están, dependiendo del país, podría ser necesario obtener una autorización nacional posterior. Para vehículos con BMW llanta AL 825M JB/GG o BMW llanta AL 825M OG/GG o BMW AL llan.dob.rad. 825M STD SO MB Slv. |
S1T6A=Sí S1T7A=Sí S1WLA=Sí |
||||||||
| Para vehículos con BMW AL llan.dob.rad. 825M STD SO MB Slv. y M Carbon cerámica freno Neumáticos mixtos sólo para eje delantero |
S1WLA=Sí S2NKA=No |
|||||||||
| 02 | Rueda de disco AL plata refinada | 9,5JX19 H2 ET20 | 2 | 36107907779 | Shop at ECS Tuning | |||||
| unicolor | ||||||||||
| Para vehículos con BMW AL llan.dob.rad. 825M STD SO MB Slv. y M Carbon cerámica freno Neumáticos mixtos sólo para eje trasero |
S1WLA=Sí S2NKA=No |
|||||||||
| 02 | Rueda de disco AL plata refinada | 10,5JX20 H2ET20 | 2 | 36107907780 | Shop at ECS Tuning | |||||
| unicolor | ||||||||||
| Para vehículos con BMW llanta AL 825M JB/GG y M Carbon cerámica freno Neumáticos mixtos sólo para eje delantero |
S1T6A=Sí S2NKA=No |
|||||||||
| 02 | Llanta aleación ligera jet black uni | 9,5JX19 ET:20 | 2 | 36108093832 | Shop at ECS Tuning | |||||
| torneado brillante y pulido brillante | ||||||||||
| Para vehículos con BMW llanta AL 825M JB/GG y M Carbon cerámica freno Neumáticos mixtos sólo para eje trasero |
S1T6A=Sí S2NKA=No |
|||||||||
| 02 | Llanta aleación ligera jet black uni | 10,5JX20 ET:20 | 2 | 36108093833 | Shop at ECS Tuning | |||||
| torneado brillante y pulido brillante | ||||||||||
| 03 | Tornillo para ruedas negro | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| Para vehículos con BMW M HERITAGE logotipos |
S3MQA=No |
|||||||||
| 04 | Tapacubos con borde cromado | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| 05 | Plaquita M | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| Para vehículos con Indicador de presión de los neumáticos |
S2VBA=No |
|||||||||
| 06 | Válvula de goma | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Valvula de inflacion | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Casquetes de válvula | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| Para vehículos con Indicador de presión de los neumáticos |
S2VBA=Sí |
|||||||||
| 09 | Mód.electr. rueda RDCi c. válv. roscada | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| Para vehículos con Indicador de presión de los neumáticos y Frecuencia de radio 315 MHz |
S2VBA=Sí S876A=Sí |
|||||||||
| 09 | Mód.electr. rueda RDCi c. válv. roscada | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| Para vehículos con Indicador de presión de los neumáticos |
S2VBA=Sí |
|||||||||
| 10 | Juego rep. válv. roscada RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| 11 | Obús de válvula RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| 12 | Tapa de válvula RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
