Chapaleta de capota for BMW 3 Series E46 318Ci (2003)
This Chapaleta de capota technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Chapaleta de capota | SCHWARZ | 1 | 51178227297 | $810.63 | Shop at ECS Tuning | ||||
| 01 | Chapaleta de capota | TITANGRAU | 1 | 51178227298 | $810.63 | Shop at ECS Tuning | ||||
| 01 | Chapaleta de capota | HELLBEIGE 2 | 1 | 51178227299 | $810.63 | Shop at ECS Tuning | ||||
| 02 | Param. chapaleta d capota, antena | GRUNDIERT | 1 | 51177025698 | $271.00 | Shop at ECS Tuning | ||||
| 02 | Param. chapaleta d capota, antena | CODE- UNI/MET. | 1 | 51170009771 | Finalizado | Shop at ECS Tuning | ||||
| En el pedido indicar código de solor | ||||||||||
| 03 | Arandela | 6,4X16X2-SW | 6 | 51177003230 | Shop at ECS Tuning | |||||
| 03 | Casquillo distanciadora | 6 | 09/2000 | 51177029277 | $2.24 | Shop at ECS Tuning | ||||
| 04 | Liston d adorno, chapaleta d capota | CHROM | 1 | 51177010325 | $202.24 | Shop at ECS Tuning | ||||
| 04 | Liston d adorno, chapaleta d capota | HOCHGLANZ SW | 1 | 51177894361 | $202.24 | Shop at ECS Tuning | ||||
| 04 | Liston d adorno, chapaleta d capota | SCHWARZ | 1 | 51178244277 | $202.24 | Shop at ECS Tuning | ||||
| 05 | Estribo de cierre portaequipaje infer. | 2 | 51258244281 | $20.98 | +core | Shop at ECS Tuning | ||||
| 06 | Tuerca hexagonal con placa | M8-ZNS3 | 4 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 07 | Apoyo | D=1MM | X | 51178260239 | $1.25 | Shop at ECS Tuning | ||||
| 08 | Cubierta, chapaleta d capota,izqu | SCHWARZ | 1 | 51178233303 | $8.63 | Shop at ECS Tuning | ||||
| 08 | Cubierta, chapaleta d capota,dcha | SCHWARZ | 1 | 51178233304 | $8.63 | Shop at ECS Tuning | ||||
| 08 | Cubierta, chapaleta d capota,izqu | TITANGRAU | 1 | 51178245853 | $9.08 | Finalizado | Shop at ECS Tuning | |||

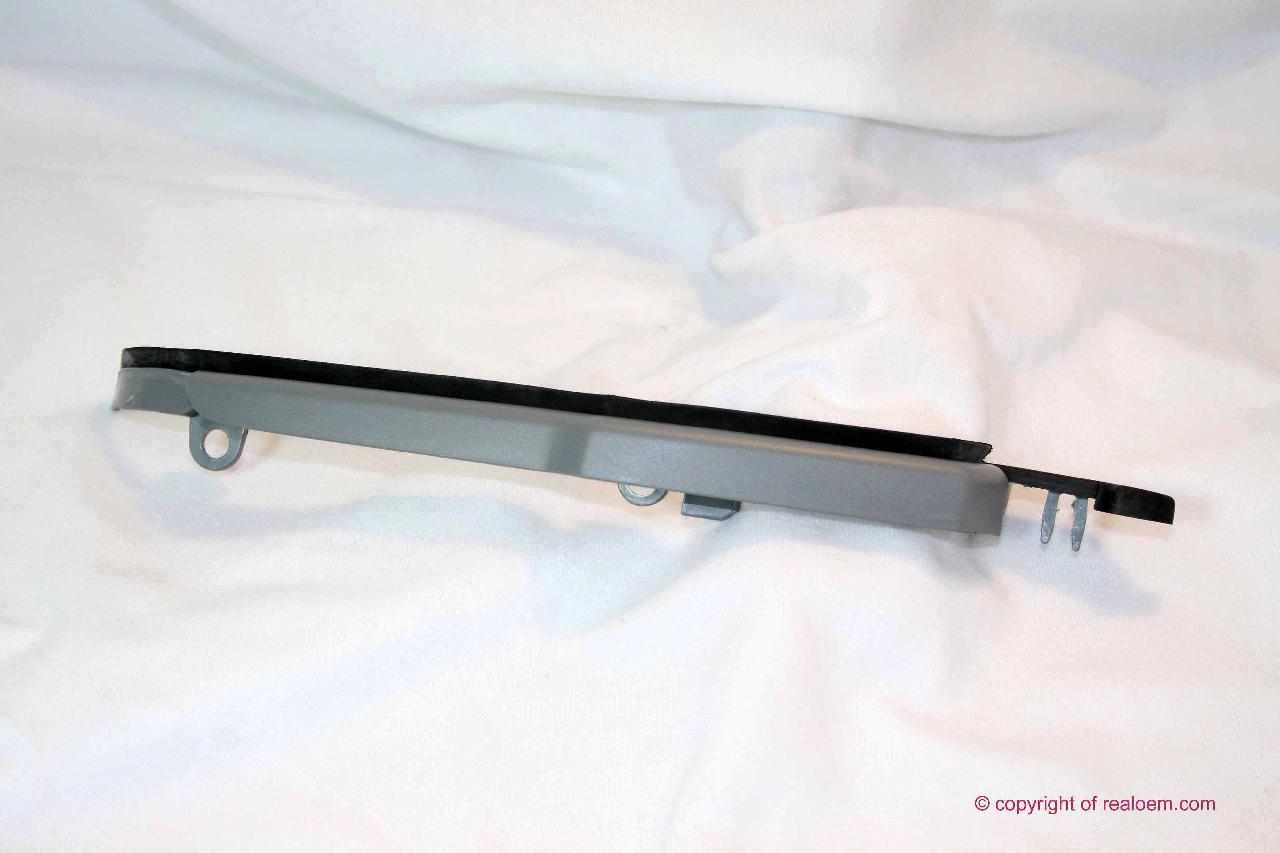

| 08 | Cubierta, chapaleta d capota,dcha | TITANGRAU | 1 | 51178245854 | $9.08 | Shop at ECS Tuning | ||||
| 08 | Cubierta, chapaleta d capota,izqu | HELLBEIGE | 1 | 51178245855 | $9.08 | Shop at ECS Tuning | ||||
| 08 | Cubierta, chapaleta d capota,dcha | HELLBEIGE | 1 | 51178245856 | $9.08 | Shop at ECS Tuning | ||||
| 09 | Tornillo Torx para aluminio | ST 5X12 | 4 | 51177016393 | $2.66 | Shop at ECS Tuning | ||||
| 10 | Bisagra de chapaleta de capota izqu. | 1 | 41638244279 | $51.43 | Shop at ECS Tuning | |||||
| 10 | Bisagra de chapaleta de capota dcha. | 1 | 41638244280 | $51.43 | Shop at ECS Tuning | |||||
| 11 | Apoyo, bisagra | D=1MM | X | 51177000813 | $1.50 | Shop at ECS Tuning | ||||
| 12 | Tuerca hexagonal con placa | M8-ZNS3 | 4 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 13 | Grapa | A12 | 2 | 07129934925 | $0.91 | Shop at ECS Tuning | ||||
| 14 | Asiento, cilindro hidraulico izqu. | 1 | 51178239239 | $12.73 | Shop at ECS Tuning | |||||
| 14 | Asiento, cilindro hidraulico dcha | 1 | 51178239240 | $12.73 | Shop at ECS Tuning | |||||
| 15 | Tuerca hexagonal con placa | M8-ZNS3 | 4 | 07129904862 | $1.12 | Shop at ECS Tuning | ||||
| 16 | Muelle de compresion gas | 320N | 2 | 51258227897 | $15.43 | Shop at ECS Tuning | ||||
| 17 | Asiento, cilindro hidraulico | 2 | 51178236957 | $2.42 | Shop at ECS Tuning | |||||
| 18 | Arandela de seguridad | B8 | 2 | 07129904492 | Shop at ECS Tuning | |||||
| 19 | Cerradura p chapaleta de capota izqu. | 1 | 51258248313 | $84.63 | Shop at ECS Tuning | |||||
| 19 | Cerradura p chapaleta de capota dcha. | 1 | 51258248314 | $84.63 | Shop at ECS Tuning | |||||
| 20 | Tornillo cilindrico con placa | M6X16-Z1 SW | 4 | 07119901913 | $0.33 | Shop at ECS Tuning | ||||
| 21 | Accionamiento enclavamiento | HINTEN | 1 | 51258248308 | $261.57 | Shop at ECS Tuning | ||||
| 22 | Mecanism.de accionam.de chapaleta capota | 1 | 67618380036 | $122.18 | +core | Shop at ECS Tuning | ||||
| 23 | Tornillo hexagonal con arandela | M6X18-U1 | 3 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 24 | Cable Bowden chapaleta de capota | 2 | 51258227907 | $20.98 | +core | Shop at ECS Tuning | ||||
| 25 | Clip | 2 | 62212306608 | $0.92 | Shop at ECS Tuning | |||||
| 26 | Tope limitador | 2 | 51178242624 | $4.65 | Shop at ECS Tuning | |||||
| 27 | Caperuza | 2 | 51178262458 | $2.20 | Shop at ECS Tuning | |||||
| 28 | Tornillo hexagonal | M8X16 | 2 | 61331372671 | $0.73 | Shop at ECS Tuning | ||||
| 29 | Abrazadera de cable | 1 | 33181181218 | $1.10 | Shop at ECS Tuning | |||||
| 30 | Tope limitador | 2 | 51177002801 | $1.13 | Shop at ECS Tuning | |||||
| 31 | Tornillo Torx para aluminio | ST 8X20 | 2 | 51177016394 | $4.59 | Shop at ECS Tuning | ||||
| 32 | tope | 2 | 51177016945 | $4.68 | Shop at ECS Tuning | |||||
| 33 | Tuerca hexagonal con placa | M6 | 18 | 51177020492 | $0.89 | Shop at ECS Tuning | ||||
| 34 | Junta, chapaleta de capota | 1 | 51718227910 | $77.30 | Shop at ECS Tuning | |||||
| 35 | Arandela elastica | 13 / 19 | 2 | 24511421929 | $0.96 | Shop at ECS Tuning | ||||
| 36 | Grapa | A12 | 2 | 07129934925 | $0.91 | Shop at ECS Tuning | ||||
| 37 | Interruptor | 1 | 61318378940 | $28.24 | Shop at ECS Tuning | |||||
| 38 | Tope limitador | 2 | 51177020048 | $6.10 | Shop at ECS Tuning | |||||
| 39 | Tornillo para plástico | TS5X12-ZNS3 | 2 | 07147194471 | $0.34 | Shop at ECS Tuning | ||||
| 40 | Clip p cable Bowden | 1 | 51257134550 | $1.11 | Shop at ECS Tuning | |||||
Notas
- Finalizado = La pieza ya es descontinuada.
- +core = plus core charge (posibilidad de devolución de la pieza antigua)
