Pasa-rueads/soporto del motor for BMW 7 Series G11 LCI 730dX (2020)

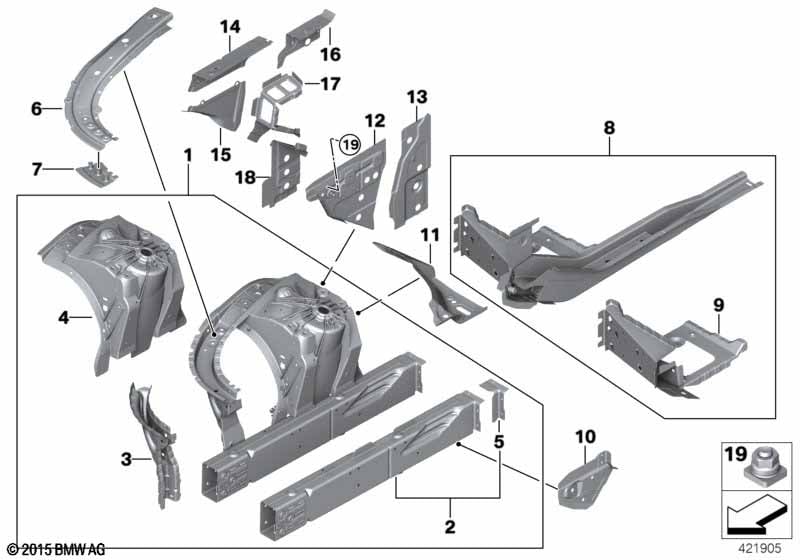

This Pasa-rueads/soporto del motor technical drawing provides a detailed breakdown of the assembly for the 7 Series G11 LCI 730dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Descripción | suplemento | Cantidad | Desde | Hasta | Número de pieza | Precio | Notas | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pasarruedas delantero izquierdo | 1 | 41007412925 | Shop at ECS Tuning | ||||||
| Necesario para la reparación | ||||||||||
| 01 | Pasarruedas delantero derecho | 1 | 41007412926 | Shop at ECS Tuning | ||||||
| Necesario para la reparación | ||||||||||
| -- | Tuerca de soldadura | M8 | 1 | 07149115672 | Shop at ECS Tuning | |||||
| Se efectúa con técnica de reparación pegado/remachado. |
||||||||||
| 02 | Soporte del motor, izquierdo | 1 | 41007359395 | Shop at ECS Tuning | ||||||
| Necesario para la reparación | ||||||||||
| -- | Remache ciego N1 | 44 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Remache ciego N2 | 2 | 83190301419 | $1.98 | Shop at ECS Tuning | |||||
| -- | Tornillo | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Adhesivo carrocería K1 | 195ML | 1 | 83190413015 | $244.89 | Shop at ECS Tuning | ||||
| -- | Limpiador R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Masilla de sellado D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Refuerzo de soporto de motor izquierda | 1 | 41007412951 | Shop at ECS Tuning | ||||||
| 02 | Soporto del motor derecho | 1 | 41007359396 | Shop at ECS Tuning | ||||||
| Necesario para la reparación | ||||||||||
| -- | Remache ciego N1 | 44 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Remache ciego N2 | 2 | 83190301419 | $1.98 | Shop at ECS Tuning | |||||
| -- | Tornillo | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Adhesivo carrocería K1 | 195ML | 1 | 83190413015 | $244.89 | Shop at ECS Tuning | ||||
| -- | Limpiador R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Masilla de sellado D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Refuerzo de soporte del motor dcha. | 1 | 41007412952 | Shop at ECS Tuning | ||||||
| -- | Protección contra frotamiento | 1 | 64219385206 | Shop at ECS Tuning | ||||||
| 03 | Viga de apoyo p pasarueda interior izqu. | 1 | 41007412929 | Shop at ECS Tuning | ||||||
| Necesario para la reparación | ||||||||||
| -- | Remache ciego N1 | 4 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Tornillo | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Adhesivo carrocería K1 | 195ML | 1 | 83190413015 | $244.89 | Shop at ECS Tuning | ||||
| -- | Remache de estampado | N5 | 16 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Limpiador R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Masilla de sellado D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Viga apoyo pasa-rueda delant. izq. | 1 | 41007412953 | Shop at ECS Tuning | ||||||
| -- | Atornilladura panel frontal izq. | 1 | 41007412955 | Shop at ECS Tuning | ||||||
| -- | Tuerca de soldadura | M8 | 1 | 07149115672 | Shop at ECS Tuning | |||||
| 03 | Viga de apoyo p pasarueda interior dcha. | 1 | 41007412930 | Shop at ECS Tuning | ||||||
| Necesario para la reparación | ||||||||||
| -- | Remache ciego N1 | 4 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Tornillo | SF PLUS M5X15 | 1 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Adhesivo carrocería K1 | 195ML | 1 | 83190413015 | $244.89 | Shop at ECS Tuning | ||||
| -- | Remache de estampado | N5 | 16 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Limpiador R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Masilla de sellado D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Sop.apoyo sin N.ºchasis pasarrued d. d. | 1 | 41007412954 | Shop at ECS Tuning | ||||||
| -- | Atornilladura panel frontal der. | 1 | 41007412956 | Shop at ECS Tuning | ||||||
| -- | Tuerca de soldadura | M8 | 1 | 07149115672 | Shop at ECS Tuning | |||||
| 04 | Soporte de muelle izqu. | 1 | 41007329637 | Shop at ECS Tuning | ||||||
| solo en combinacion con | ||||||||||
| -- | Viga de apoyo p pasarueda interior izqu. | 1 | 41007412929 | Shop at ECS Tuning | ||||||
| Necesario para la reparación | ||||||||||
| -- | Remache ciego N1 | 64 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Tornillo | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Remache de estampado | N5 | 4 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Limpiador R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Masilla de sellado D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Viga apoyo pasa-rueda delant. izq. | 1 | 41007412953 | Shop at ECS Tuning | ||||||
| -- | Atornilladura panel frontal izq. | 1 | 41007412955 | Shop at ECS Tuning | ||||||
| 04 | Soporte de muelle dcha. | 1 | 41007329638 | Shop at ECS Tuning | ||||||
| solo en combinacion con | ||||||||||
| -- | Viga de apoyo p pasarueda interior dcha. | 1 | 41007412930 | Shop at ECS Tuning | ||||||
| Necesario para la reparación | ||||||||||
| -- | Remache ciego N1 | 64 | 83190301414 | $1.98 | Shop at ECS Tuning | |||||
| -- | Tornillo | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Remache de estampado | N5 | 4 | 83192158079 | $0.39 | Shop at ECS Tuning | ||||
| -- | Limpiador R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Masilla de sellado D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Sop.apoyo sin N.ºchasis pasarrued d. d. | 1 | 41007412954 | Shop at ECS Tuning | ||||||
| -- | Atornilladura panel frontal der. | 1 | 41007412956 | Shop at ECS Tuning | ||||||
| 05 | Chapa d.cierre soporte d.motor izquie. | 1 | 41007412935 | Shop at ECS Tuning | ||||||
| 05 | Chapa d.cierre soporte d.motor derecha | 1 | 41007412936 | Shop at ECS Tuning | ||||||
| 06 | Viga apoyo pasa-rueda delant. izq. | 1 | 41007412953 | Shop at ECS Tuning | ||||||
| solo en combinacion con | ||||||||||
| -- | Atornilladura panel frontal izq. | 1 | 41007412955 | Shop at ECS Tuning | ||||||
| 06 | Sop.apoyo sin N.ºchasis pasarrued d. d. | 1 | 41007412954 | Shop at ECS Tuning | ||||||
| solo en combinacion con | ||||||||||
| -- | Lámina protectora número de bastidor | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| -- | Atornilladura panel frontal der. | 1 | 41007412956 | Shop at ECS Tuning | ||||||
| Para el pedido son necesarios los siguientes datos: - Número de chasis |
||||||||||
| 06 | Sop.apoyo con n.ºchasis pasarrued d. d. | 1 | 41002412340 | Shop at ECS Tuning | ||||||
| solo en combinacion con | ||||||||||
| -- | Atornilladura panel frontal der. | 1 | 41007412956 | Shop at ECS Tuning | ||||||
| Necesario para la reparación | ||||||||||
| -- | Lámina protectora número de bastidor | 1 | 51719636310 | Shop at ECS Tuning | ||||||
| 07 | Atornilladura panel frontal izq. | 1 | 41007412955 | Shop at ECS Tuning | ||||||
| 07 | Atornilladura panel frontal der. | 1 | 41007412956 | Shop at ECS Tuning | ||||||
| 08 | Soporto del motor trasera izquierda | 1 | 41007412941 | Shop at ECS Tuning | ||||||
| 08 | Soporto del motor trasera derecho | 1 | 41007412942 | Shop at ECS Tuning | ||||||
| 09 | Soporto del motor trasera derecho | 1 | 41007412942 | Shop at ECS Tuning | ||||||
| 09 | Pza. unión bastidor lat. izq. | 1 | 41007412943 | Shop at ECS Tuning | ||||||
| 10 | Refuerzo de soporto de motor izquierda | 1 | 41007412951 | Shop at ECS Tuning | ||||||
| 10 | Refuerzo de soporte del motor dcha. | 1 | 41007412952 | Shop at ECS Tuning | ||||||
| 11 | Chapa interior de pasaruedas tras.izqu. | 1 | 41007412963 | Shop at ECS Tuning | ||||||
| 11 | Chapa interior de pasaruedas tras.dcha. | 1 | 41007412964 | Shop at ECS Tuning | ||||||
| 12 | Montante A interior delant. izq. | 1 | 41007412945 | Shop at ECS Tuning | ||||||
| 12 | Montante A interior delant. der. | 1 | 41007412946 | Shop at ECS Tuning | ||||||
| 13 | Columna a interior izquierda | 1 | 41007412965 | Shop at ECS Tuning | ||||||
| 13 | Columna a interior derecha | 1 | 41007412966 | Shop at ECS Tuning | ||||||
| 14 | Alargador,viga apoyo de pasa-rueda izqu. | 1 | 41007412961 | Shop at ECS Tuning | ||||||
| 14 | Alargador,viga apoyo de pasa-rueda dcha. | 1 | 41007412962 | Shop at ECS Tuning | ||||||
| 15 | Chapa de cierre p viga de apoyo izqu. | 1 | 41007412959 | Shop at ECS Tuning | ||||||
| 15 | Chapa de cierre p viga de apoyo dcha. | 1 | 41007412960 | Shop at ECS Tuning | ||||||
| 16 | Apoyo de soporte, viga apoyo izqu. | 1 | 41217421795 | Shop at ECS Tuning | ||||||
| 16 | Apoyo de soporte, viga apoyo dcha. | 1 | 41217421796 | Shop at ECS Tuning | ||||||
| 17 | Chapa divisoria montante A izquierdo | 1 | 41217421799 | Shop at ECS Tuning | ||||||
| 17 | Chapa divisoria montante A derecho | 1 | 41217421800 | Shop at ECS Tuning | ||||||
| 18 | Refuerzo protec. contra impactos izq. | 1 | 41217421793 | Shop at ECS Tuning | ||||||
| 18 | Refuerzo protec. contra impactos dch. | 1 | 41217421794 | Shop at ECS Tuning | ||||||
| 19 | Perno de puesta | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 19 | Perno de masa 48 V | M8X13 | X | 41009880323 | Shop at ECS Tuning | |||||
| 19 | Perno de puesta | M6X12 | X | 41118367249 | $1.85 | Finalizado | Shop at ECS Tuning | |||
| 19 | Perno de puesta | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
